In the field of industrial automation and power system monitoring, the accuracy of power measurement is directly related to energy management efficiency, equipment operation stability and energy consumption optimization capabilities. As a measurement device designed for high-precision requirements, the S3-WRD-3-015A40N AC active and reactive power sensor achieves 0.5-level accuracy through systematic optimization of hardware design, signal processing algorithms, material selection and manufacturing processes. The following will analyze in depth how this sensor achieves such high measurement accuracy from the perspective of technical principles, core design ideas and practical applications.

1. The basis of precision measurement: comprehensive optimization of hardware design

The core goal of the power transmitter S3-WRD-3-015A40N is to achieve accurate calculation of active power and reactive power through high-precision voltage and current sampling combined with advanced signal processing technology. The optimization of its hardware design is mainly reflected in the following aspects:

(1) High-precision transformer and sensor module

The measurement of voltage and current is the basis of power calculation. The power transducer S3-WRD-3-015A40N uses high-permeability materials with low hysteresis loss as the transformer core, which effectively reduces the measurement deviation caused by magnetic saturation or hysteresis effect. At the same time, the secondary side of the current transformer adopts a low temperature coefficient copper winding design to ensure stable linear output over a wide temperature range. The voltage sensor uses a high-insulation ceramic substrate and a low-noise amplifier circuit to reduce the impact of external electromagnetic interference on the measurement results. These designs jointly ensure the high fidelity of the input signal and lay a solid foundation for subsequent power calculations.

(2) High-resolution analog-to-digital converter (ADC)

The S3-WRD-3-015A40N transmitter uses a 24-bit high-resolution ADC chip with a sampling rate of up to 100kS/s, which can capture small changes in voltage and current waveforms. High resolution not only improves the quantization accuracy of the signal, but also further reduces the impact of quantization noise through oversampling technology. In addition, the data transmission between the ADC module and the processor uses a differential signal interface to effectively suppress common-mode interference and ensure the accuracy of the sampled data.

(3) Low-noise circuit design

In the analog signal processing stage, the noise level of the circuit will directly affect the final measurement accuracy. S3-WRD-3-015A40N strictly isolates the analog circuit from the digital circuit through the layout optimization of the multi-layer PCB board to avoid the contamination of the analog signal by digital switching noise. At the same time, the operational amplifier and filter capacitor are all low-noise, low-drift industrial-grade devices to ensure that the signal quality can still be maintained in a complex electromagnetic environment.

2. Accurate compensation and calibration at the algorithm level

The optimization of hardware design is only the first step to achieve high precision. The improvement of software algorithms is also crucial. S3-WRD-3-015A40N further improves the reliability of measurement through multi-dimensional algorithm compensation and dynamic calibration mechanism.

(1) Dynamic correction of harmonic distortion

In actual industrial scenarios, voltage and current waveforms often have harmonic distortion, which poses a challenge to the accuracy of power calculation. The active power transmitter S3-WRD-3-015A40N has a built-in harmonic analysis algorithm based on fast Fourier transform, which can identify and separate the fundamental and harmonic components in real time. By extracting the effective value and phase angle of the fundamental wave, the sensor can accurately calculate the active power and reactive power, thereby avoiding measurement errors caused by harmonics. In addition, the algorithm also supports filtering optimization for specific frequencies (such as 50Hz/60Hz) to further improve the signal-to-noise ratio of the fundamental signal.

(2) Adaptive compensation for temperature drift

Changes in ambient temperature will cause the drift of the internal component parameters of the sensor, thereby affecting the measurement accuracy. The transducer S3-WRD-3-015A40N integrates a high-precision temperature sensor and combines it with a linear regression model to monitor and correct the impact of temperature on the voltage and current sampling channels in real time. For example, when it is detected that the temperature rise causes the saturation of the transformer core to increase, the algorithm will automatically adjust the gain factor to offset the nonlinear error. This adaptive compensation mechanism allows the sensor to maintain a level 0.5 accuracy within the operating range of -20℃ to +70℃.

(3) Dynamic calibration and error correction

In order to deal with the drift problem that may occur during long-term use, the power sensor S3-WRD-3-015A40N supports online dynamic calibration function. Through the built-in reference voltage source and self-test program, the sensor can automatically detect the gain error and offset error of each channel during operation, and make real-time corrections through software algorithms. For example, when it is found that the zero drift of the current channel exceeds the set threshold, the system will trigger the calibration process and recalibrate the sampling parameters using a known standard signal to restore the measurement accuracy.

3. Strict control of materials and processes

The realization of high-precision measurement equipment not only depends on design and algorithms, but also on strict requirements on material properties and manufacturing processes.

(1) Selection of high-stability materials

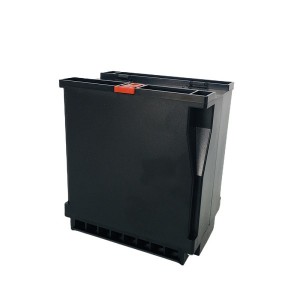

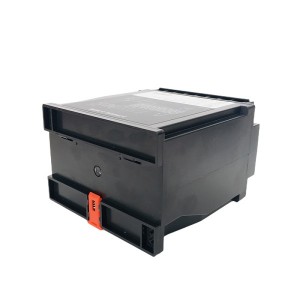

The shell of the transmitter S3-WRD-3-015A40N is made of flame-retardant engineering plastics, whose weather resistance and impact resistance can meet the harsh environmental requirements of industrial sites. The internal circuit board uses a high-TG epoxy resin substrate to ensure that stable electrical performance can be maintained under high temperature or humidity changes. In addition, the connectors and terminals of the sensor are made of gold-plated copper alloy, which not only improves the conductivity but also reduces the possibility of contact resistance changing over time.

(2) Precision assembly and factory calibration

During the manufacturing process, the transformer winding of S3-WRD-3-015A40N adopts fully automatic winding equipment, and through laser ranging and tension control technology, it ensures that the repeatability error of winding turns and distributed capacitance is less than 0.1%. After assembly, each device needs to undergo multiple rounds of factory calibration, including accuracy verification under fundamental signal, anti-interference test under harmonic interference, and long-term stability test. Only devices that pass all tests will be given the certification mark of 0.5 level accuracy.

4. Reliability verification in actual application scenarios

The 0.5 level accuracy of the sensor S3-WRD-3-015A40N is not only limited to laboratory testing, but its performance in complex industrial environments is also trustworthy. For example, in the arc furnace system of a steel plant, the sensor needs to face load currents up to 2000A and frequent harmonic shocks. Through its harmonic analysis algorithm and dynamic compensation mechanism, S3-WRD-3-015A40N can stably output power measurement data within ±0.5%, providing an accurate basis for energy consumption monitoring and equipment protection. In the field of new energy, this sensor is also widely used in power monitoring of photovoltaic inverters and wind power converters, and its high-precision characteristics help maximize power generation efficiency.

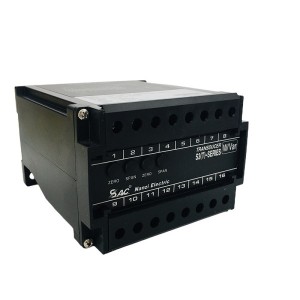

In addition, S3-WRD-3-015A40N supports industrial communication protocols such as Modbus-RTU and RS485, and can be seamlessly connected to SCADA systems or PLC controllers. This open design not only simplifies the difficulty of system integration, but also makes real-time data collection and remote diagnosis possible, further improving the intelligence level of industrial automation systems.
