Stop Killing Your AA10VSO45DFR1/31R-VPA12N00 Jacking Oil Pump with Dirty Oil

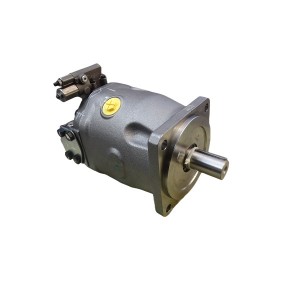

The AA10VSO45DFR1/31R-VPA12N00 jacking oil pump is the heart of your turbine startup. It lifts the massive rotor so the bearings don’t grind together. This pump is a high-precision machine, meaning the parts inside fit together very tightly. We are talking about gaps smaller than 10 microns. Because of this, the jacking oil pump is incredibly picky about its oil. If your oil isn’t at NAS 6 cleanliness or better, you are asking for trouble. Even tiny bits of dust that you can’t see will get stuck between the pistons and the walls. Once that happens, the metal starts to scratch, and your pump loses its power. It’s that simple: dirty oil equals a broken pump.

Microscopic Scratches Lead to Big Failures

People often think if they can’t see dirt in the oil, it’s clean enough. That is a mistake for a jacking oil pump. The most dangerous particles are the ones around 5 to 10 microns in size. They fit perfectly into the gaps inside the pump. When the pump runs, these particles act like tiny knives. They score the surface of the plungers and the cylinder block. This scoring creates “leak paths.” The oil starts to leak internally instead of going to lift the turbine rotor. This makes the jacking oil pump run hot and inefficient. To stay at NAS 6, you have to be obsessive about keeping the oil pure. If the plungers get scratched, you can’t just “buff it out”—you usually have to replace the whole rotating group.

It isn’t just the plungers either. The valve plate inside the jacking oil pump needs a perfect seal against the cylinder. If dirt gets in there, it grinds the surfaces down until they aren’t flat anymore. Once that seal is gone, your pressure drops, and the pump is basically a heater instead of a pump. This is why NAS 6 is the gold standard for these units. It isn’t just a suggestion; it’s what keeps the metal from eating itself.

The Best Ways to Guard Your Oil

How do you keep the oil clean enough for a jacking oil pump? It starts with the tank. If you have a cheap cap on your oil tank, dust from the power plant will get in every time the oil level moves. You need a high-quality desiccant breather. It dries the air and filters out the dust. Also, stop pouring oil into the tank from open buckets. That is a great way to kill your jacking oil pump. Always use a jacking oil filter cart to pump new oil into the reservoir. Even fresh oil from a drum is usually too dirty (around NAS 10) and needs to be cleaned before it hits the pump.

Taking oil samples once a month is another smart move. It’s like a blood test for your machine. If the particle count is rising, your filters might be broken or something inside the jacking oil pump is starting to fail. Catching it early saves you from a total system breakdown during a critical startup.

Picking Filters That Actually Work

For a jacking oil pump like the AA10VSO45DFR1/31R-VPA12N00, you need fine filters. Usually, 5 or 10-micron filters are the way to go. But look at the Beta Ratio. A filter with a Beta Ratio of 200 or more is what you want. This means it is very efficient. A cheap filter might say “10 microns” on the box but still let half the dirt through. That’s not good enough for a high-pressure piston pump. You need “glass fiber” media because it holds more dirt and doesn’t break down like cheap paper filters.

When to Swap Your Filters

Don’t just change filters every six months and hope for the best. Use the differential pressure indicator. As the filter fills up with junk, the pressure builds up. When the indicator moves into the “danger” zone (usually around 0.2 MPa), swap the element immediately. If you wait, the oil might bypass the filter entirely, sending all that dirt straight into the jacking oil pump. If you’ve just done a big repair on the pipes, keep a close eye on the gauges—the filters will fill up much faster than normal for the first few days.

Even if the gauge looks clean, change the filter at least once a year. Chemicals in the oil can make the filter media brittle over time. Also, don’t forget the air breather on the tank. If it turns a different color, it means it’s full of moisture and dust. A fresh breather helps the jacking oil pump stay dry and clean.

Watch the Temperature

Temperature affects cleanliness more than you think. If the oil is too cold, it’s thick and won’t flow through the fine filters properly. This might trip your “clogged filter” alarm even if the filter is new. If it’s too hot, the oil gets thin. Thin oil doesn’t protect the pistons as well, making it easier for small particles to cause damage. For the AA10VSO45DFR1/31R-VPA12N00 jacking oil pump, try to keep the oil between 30°C and 50°C. This is where the lubrication is best and the filters do their best work.

Keeping Your Pump Alive

At the end of the day, the AA10VSO45DFR1/31R-VPA12N00 jacking oil pump is a great tool, but it can’t handle filth. If you keep the oil at NAS 6, use the right filters, and change them when they get full, your pump will last for years. If you ignore the oil, you’ll be buying a new pump much sooner than you want.

Reach out today for a price or technical help. Whether you need a spare pump for the warehouse or a better filtration setup, we are here to assist. Don’t let a “dirty” system cause your next turbine trip—contact us now and get the parts you need to keep things running smooth.
