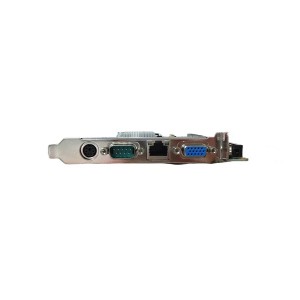

Primary Signal Acquisition Board APF7.820.111D-A: Guardian of Weak Signal Stability

Boiler flame TV sensors turn flame light into tiny electrical signals. Drum pressure sensors output microvolt currents matching pressure. These raw field signals are the “first-hand data” for the DCS system to judge unit status. The APF7.820.111D-A primary signal acquisition board stands between the sensor and the DCS. It’s a “signal transfer station” and a “signal stabilizer.” Its main job is to stop weak signal decay early on. It prevents measurement drift caused by bad contacts or board aging. It makes sure every data point shows the real machine condition.

I. Hardware Protection: The Anti-Decay Foundation

Bad contact and board aging are “invisible killers” for weak signal transfer. The APF7.820.111D-A primary signal acquisition board starts with the hardware. It uses durable build and damage-proof design for a longer, stable life.

Gold-Plated Terminals: No Oxidation or Corrosion at Contact Points

• The terminals where the sensor cable meets the acquisition board are the “first hurdle” for signal transfer.
• All terminals on the APF7.820.111D-A primary signal acquisition board are gold-plated. Gold layer is 5µm thick. Chemical stability is much better than copper.
• Contact resistance is always below 0.01Ω. Almost zero signal loss. Tests showed the terminals ran for 18 months in a wet environment. No sign of rust. Stable contact performance.

Reinforced On-Board Power: Stable Supply Stops Signal “Drift”

• The APF7.820.111D-A primary signal acquisition board has a built-in linear regulator module. It outputs stable voltage, ±0.1V accurate. This power feeds only the amplifier circuits.
• It has overcurrent protection. If a sensor cable shorts, the module limits current automatically. Won’t burn the board. Won’t affect other channels.

High-Temperature Baseboard: Slow Aging in Plant Heat

• The APF7.820.111D-A primary signal acquisition board uses an FR-4 high-temp baseboard. Handles 130°C short-term heat. Insulation stays stable long-term.
• Copper traces on the board are thicker. 20% wider than normal boards. Lowers resistance. Cuts heating and aging risk.

II. Signal Boost and Cleanup: The “Shield” for Weak Signals

Raw sensor signals are weak. They fight interference poorly. The APF7.820.111D-A primary signal acquisition board uses low-noise amplification and precise filtering. It makes signals “stronger and cleaner.”

Low-Noise Amplifier: Boosts Signal, Not Noise

• The APF7.820.111D-A primary signal acquisition board gives each channel a separate low-noise operational amplifier. It boosts microvolt signals 100-1000 times accurately. Adds almost no extra noise.
• The boosted signal doesn’t “baseline drift.” Drift was under 0.05mV. Perfect for DCS collection.

Channel-Specific Filtering: Cuts Noise, Keeps Real Signal

• The APF7.820.111D-A primary signal acquisition board gives each channel an RC low-pass filter. It blocks high-frequency noise. Only the sensor’s valid signal gets through.
• Filter settings can be tuned per sensor. Flame TV signals can be set to 500Hz. Pressure sensor signals set to 1kHz. This flexibility lets the APF7.820.111D-A primary signal acquisition board fit different sensors.

III. Connection and Install: Details Stop Contact Problems

Often, signal issues are not the board. They are bad connection or install. The stable run of the APF7.820.111D-A primary signal acquisition board needs good practices.

Cable Choice and Crimping: Less Contact Resistance from the Source

• Cable must be shielded twisted pair. Wire cross-section must be ≥ 0.5mm².
• Crimping must use a special crimping tool. Wire must be fully inside the terminal sleeve. The APF7.820.111D-A primary signal acquisition board terminals have anti-pull clips. Stops vibration from causing bad contact.

Shield Single-Point Grounding: Cuts Noise Path

• Grounding both ends causes a “ground loop.” Brings in noise.
• The APF7.820.111D-A primary signal acquisition board has dedicated shield ground posts. Ground the shield only on this end. Keep ground resistance under 4Ω.

IV. Routine Maintenance: Longer Stable Life

The APF7.820.111D-A primary signal acquisition board is durable. But don’t skip routine checks. Simple checks stop potential failure.

• Monthly check: gently pull sensor cables. Confirm they are tight. Clean dust off the board.
• Every six months: use a multimeter. Check terminal contact resistance. Over 0.1Ω? Sand the terminal lightly or replace it.
• Signal drifts slightly? Check the potentiometers. Fine-tune it to the standard value with a small screwdriver.
• If you don’t know how to calibrate, or drift keeps happening, call us for tech support.

Conclusion: Right Board Means Reliable Data

Stable weak signal transfer is the base for accurate control in a power plant. The APF7.820.111D-A primary signal acquisition board builds a hardware defense with gold terminals and high-temp board. It boosts signal quality with low-noise amplification and specific filtering. With good connection and maintenance, it solves signal decay, drift, and jumps. It gives reliable data for unit operation.

Is your plant struggling with unstable signals or measurement drift? Do you need to buy the APF7.820.111D-A primary signal acquisition board and cables? Call us. We provide genuine boards built for plant conditions. We also send techs to guide install and tuning. Every weak signal will be caught precisely. It secures the unit’s safe and stable run.
