Features and uses
RTV Silicon steel sheets adhesive J0705 is suitable for brushing and bonding the silicon steel sheet of the stator core of the generator during the lamination process. Have strong adhesion, good physical, mechanical, electrical properties, and heat resistance.
RTV Silicon steel sheets adhesive J0705 is mainly used for bonding silicon steel sheets of large generator stator cores. During the stacking process, adhesive is applied between the silicon steel sheets or the end face of the iron core, and then the silicon steel sheets are bonded into a whole through the penetration effect of the adhesive. This can prevent the loosening or displacement of silicon steel sheets during operation, and maintain the stability of the stator structure.
Product parameters
| Appearance | Uniform color with mechanical impurities |
| Viscosity | ≤ 60 s |
| Shear strength | ≥ 17 MPa |
| Curing time | room temperature ≤ 24 hours |
| Applicable units | Insulation and heat resistance level F (temperature resistance 155 ℃) for generators |
| Attention | Store at room temperature, away from heat sources, and avoid direct sunlight |
| Shelf life | Storage period at room temperature is 12 months |
| Packaging | This product is packaged in two components: A and B |
Application Cases
1. High voltage large generator stator core lamination bonding: RTV Silicon steel sheets adhesive J0705 is suitable for the bonding of high-voltage large generator stator core silicon steel sheets during the lamination process. During the lamination process, RTV Silicon steel sheets adhesive J0705 is applied between the silicon steel sheets, and then the silicon steel sheets are stacked layer by layer. After room temperature curing, the adhesive penetrates between the silicon steel sheets, making them firmly bonded as a whole. This can prevent the silicon steel sheet from loosening or displacement during operation, ensuring the stability and efficient operation of the stator.
2. Iron core end face bonding: RTV Silicon steel sheets adhesive J0705 can also be used for the bonding of iron core end faces. After the lamination of the stator core is completed, J0705 adhesive is applied to the end face of the core. Through the penetration effect of the adhesive, the silicon steel sheet of the motor stator core is bonded into a whole. This bonding method can effectively prevent the silicon steel sheet on the end face of the iron core from loosening, and improve the stability and reliability of the overall structure.
By using RTV Silicon steel sheets adhesive J0705, power plants can ensure the strong bonding of the iron core silicon steel sheet of the generator stator during and after lamination. This helps to improve the efficiency of the generator, reduce vibration and noise, and ensure the reliability and long-term stable operation of the equipment.

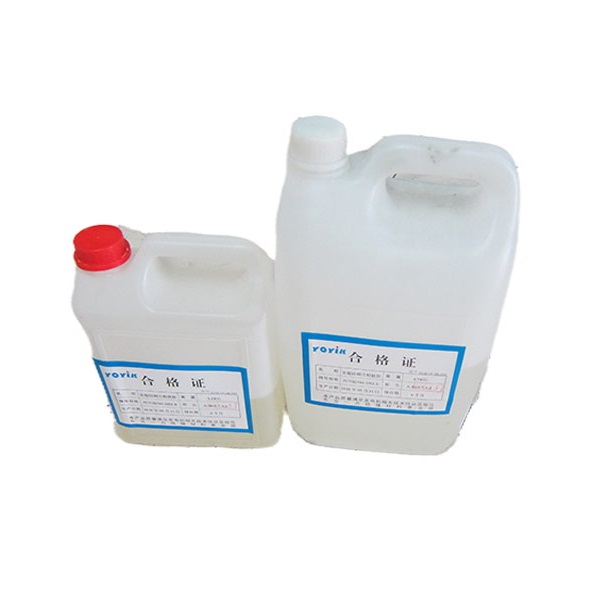

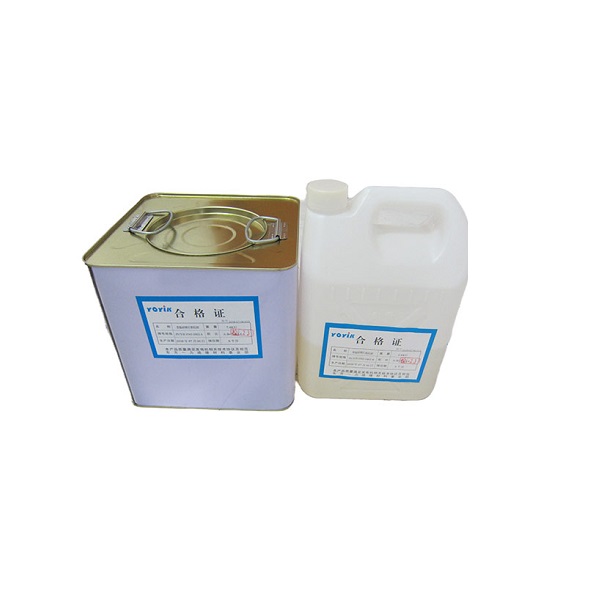

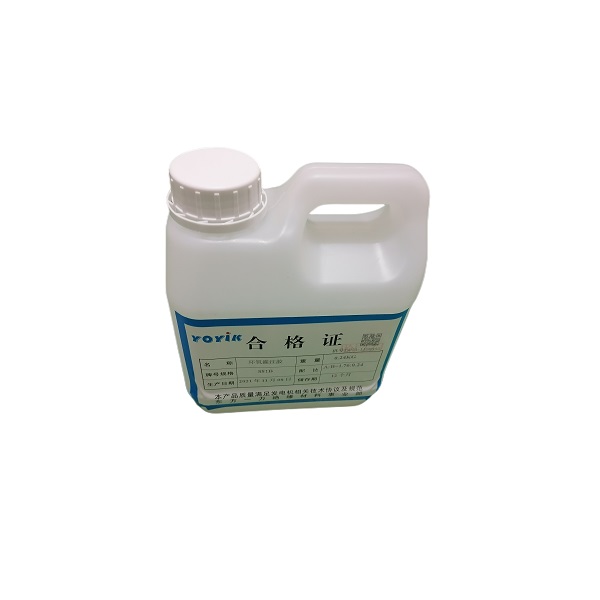

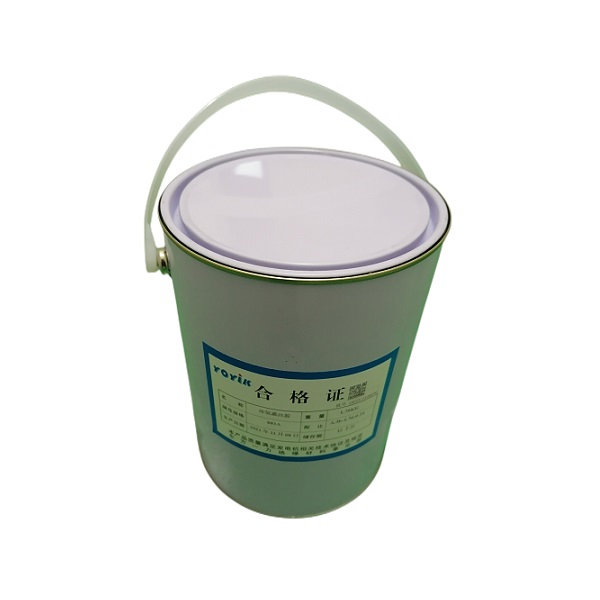

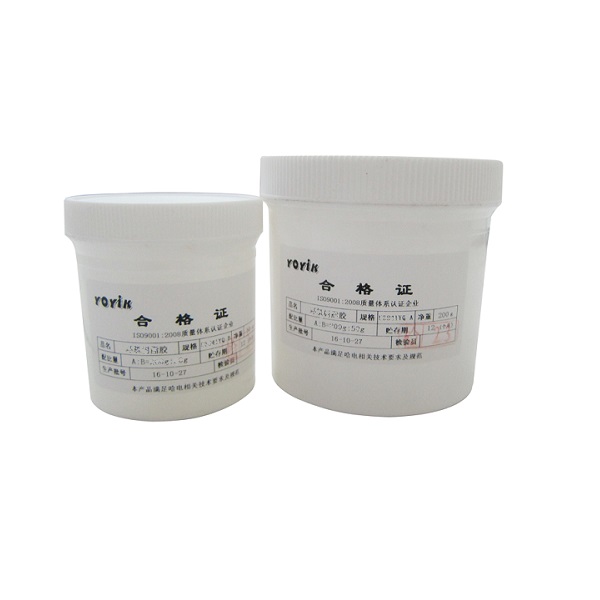

RTV Silicon steel sheets adhesive J0705 Show
