Features and uses
3240 Epoxy Phenolic Laminated Glass Fabric Slot Wedge have high mechanical strength and good electrical properties, and are motor insulating parts with high dielectric properties and water resistance. Our motor slot wedges are made by special equipment and special technology, and the material can be suitable for different types and insulation grades of generator motors. The main varieties are: slot wedge with hole, spring slot wedge, stator slot wedge, end slot wedge, aluminum bronze slot wedge, air throwing slot wedge, rotor slot wedge, damping slot wedge, end slot wedge, ventilation slot wedge, Support slot wedge, wire embedded slot wedge, slot wedge thin pad, etc.
Common material: epoxy phenolic laminated glass cloth 3240
Product Size
Processing according to drawings and samples, it can be customized according to user requirements.
Performance
Performance of 3240 Slot Wedge:
Appearance: smooth and smooth surface, no bubbles, impurities, no obvious defects.
Density: 1.7～1.9 g/cm3
Water absorption: ≤ 23 mg
Adhesive strength: ≥6600
Heat resistance class: BF
Bending strength: ≥200kg at room temperature, >100kg at high temperature
Breakdown voltage: ≥100kV under normal conditions, ≥20kV after damp
Precautions
3240 Epoxy Phenolic Laminated Glass Fabric Slot Wedge should store in a cool, dry and ventilated place. Keep away from acids, ignition sources and oxidizers. Keep sealed and away from children.
Shelf life: below 40℃, storage period is 18 months

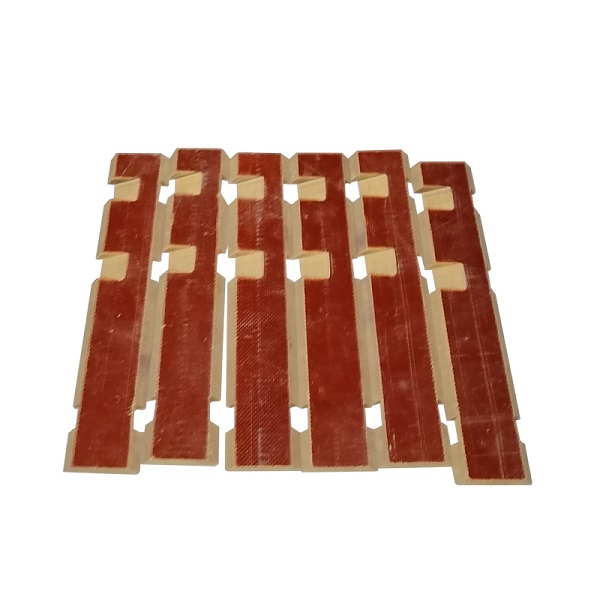

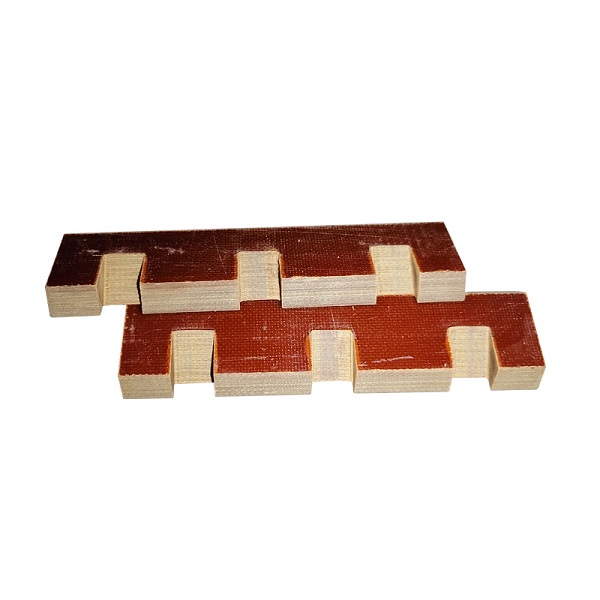

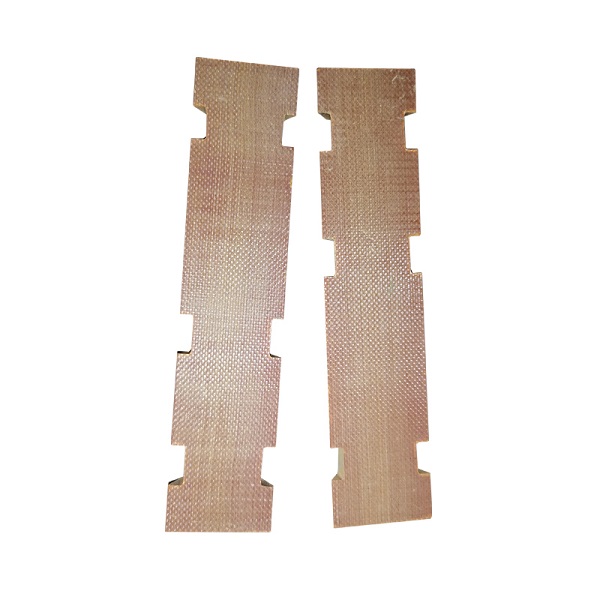

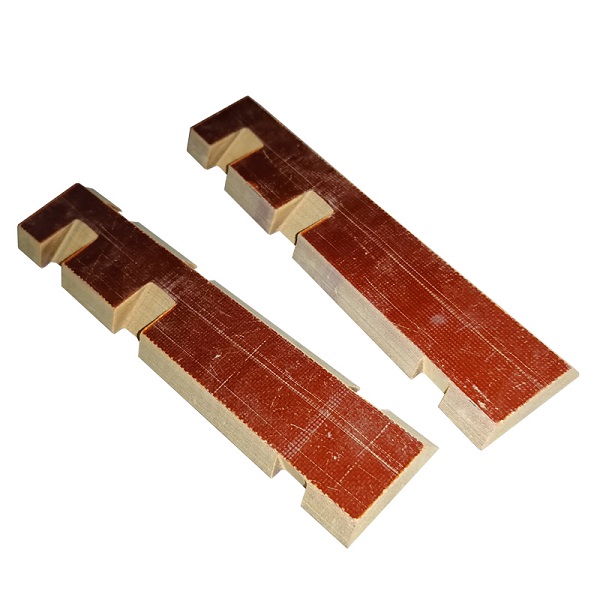

3240 Slot Wedge Show
