The Magnetoresistive speed sensor SZCB-01-A1-B1-C3 is a type of sensor SZCB-01 series that uses the principle of electromagnetic induction to test gear speed. It has a large output signal and strong anti-interference performance. When using it, a gear should be installed on the shaft of the measured speed to install the sensor on the bracket, and the gap between the sensor and the gear top should be adjusted to about 1mm.
operational principle
The Magnetoresistive speed sensor SZCB-01-A1-B1-C3 causes a magnetic field change when metal goods pass through the front end of the Hall sensor. The Hall element detects the magnetic field change and converts it into an alternating electrical signal. The sensor's built-in circuit amplifies and reshapes the signal, outputting a good shaping pulse signal. The measurement frequency range is wider, and the 0 speed can be measured. The output signal is also more accurate and stable, and it is easy to install, widely used in vehicles, Speed measurement of motors, fans, and steam turbines.
Technical parameters
| Working voltage | DC5~30V |
| Measurement range | 0~20KHZ |
| Speed measurement gear form | modulus 1~3 (open wheel) |
| Working temperature | -30~+120 ° C |
| Thread specification | M16x1x80mm or M12x1x80mm (can be customized) |
| Installation clearance | 1-5mm |
| Weight | approximately 100 g |
| output signal | square wave, with a peak to peak value approximately equal to the amplitude of the working power supply voltage, independent of speed |
Note: If you want to learn more about product information, please do not hesitate to contact us.

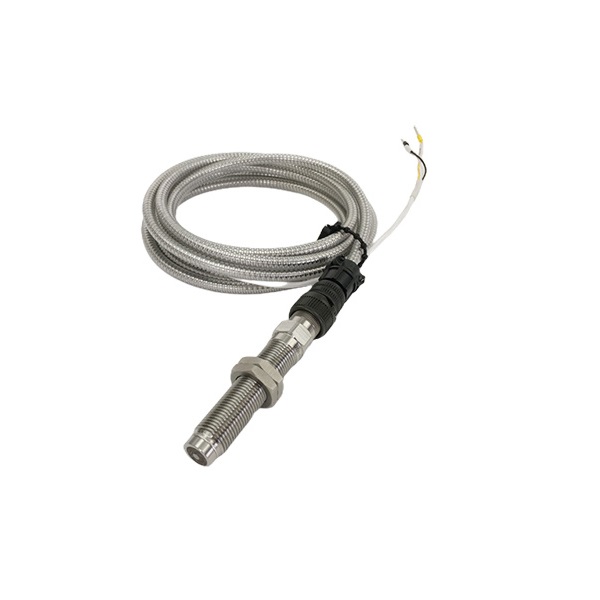

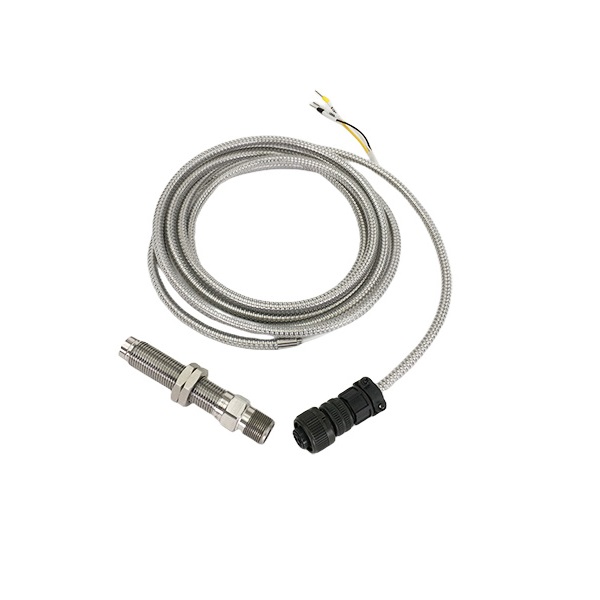

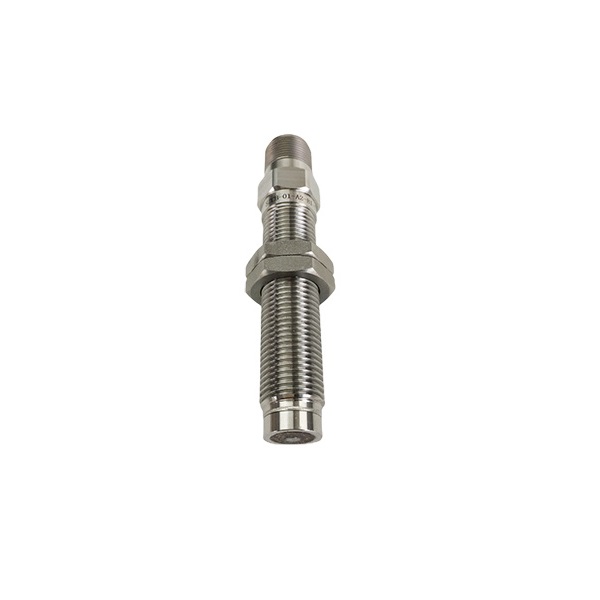

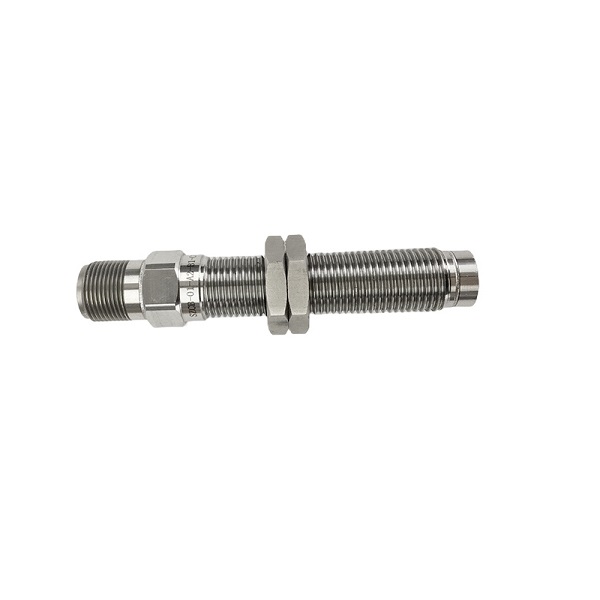

speed sensor SZCB-01-A1-B1-C3 Show
