STA-SZ6 Vibration Sensor: Stopping Fake Data on Power Plant Blowers

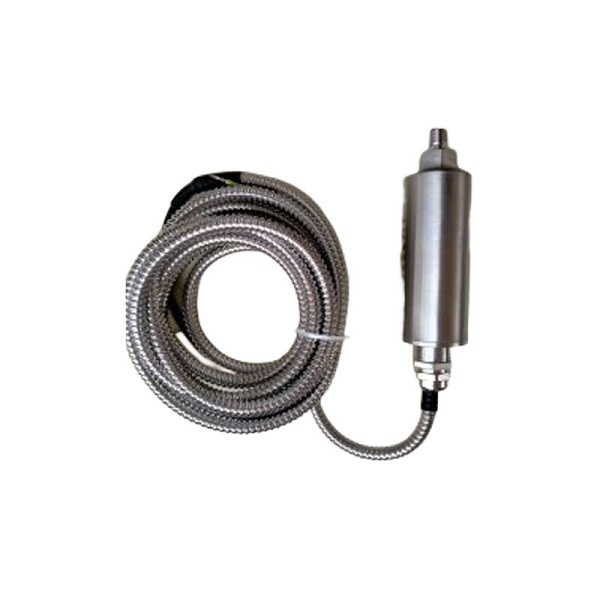

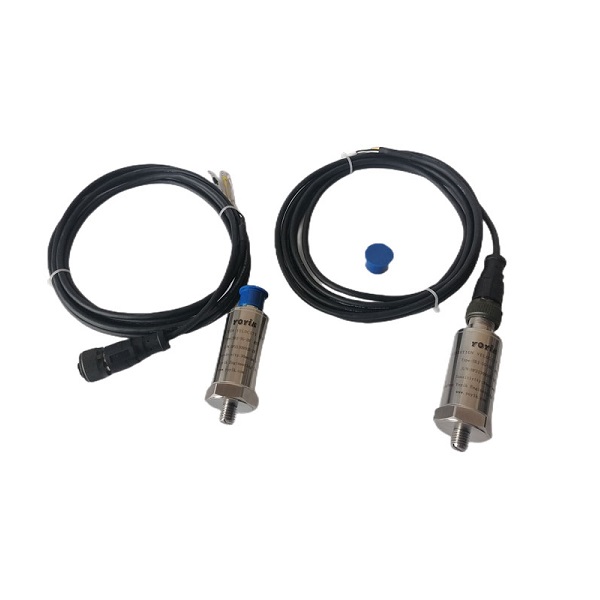

In a power plant, the blower is the lungs of the operation. If it stops, the whole unit feels it. To keep those blowers healthy, we rely on the STA-SZ6 vibration sensor. It’s a precise piece of kit, but here is the problem: a sensor is only as good as its connection to the machine.

If you don’t install it perfectly, you get “distortion.” In the field, we call this “fake data.” The sensor might tell you the blower is about to explode when it’s actually fine, or worse, it says everything is smooth while a bearing is shredding itself to pieces. Most of the time, the sensor isn’t broken—it’s just loose or sitting on an uneven surface.

1. The Pre-Check: Don’t Rush the Start

You might be tempted to just bolt the sensor on and walk away. Don’t. If you start with a bad foundation, you’ll be back out there fixing it in two days.

First, look at the STA-SZ6 sensor itself. Is the probe tip clean? Are the threads on the casing sharp and clear? If you see rust or a dent on the probe, it’s already compromised. Next, look at the mounting base. On a high-speed blower, the vibration is constant and brutal. You can’t just use any random bracket you found in the shop. You need a base that matches the curvature and the bolt pattern of the blower casing.

Need a factory-spec base for the STA-SZ6? We keep them in stock. Reach out to get the right fit for your machine.

2. Mounting the Base: The “Anchor” of the System

The base is the bridge between the blower and the sensor. If that bridge is wobbly, the data will be garbage.

• Thread Cleaning: Before you even reach for a bolt, clean the holes. Get the old grease, rust, and metal shavings out. If the threads aren’t clean, you’ll hit your torque target, but the bolt won’t actually be tight against the base.
• Torque is Everything: Use high-strength bolts. Get a torque wrench. If you over-tighten, you might warp the base; if it’s too loose, the blower will vibrate the bolts right out of the hole.
• The Hand Test: Once it’s bolted down, give it a real tug. If there is even a microscopic “click” or movement, you aren’t done. It needs to feel like part of the blower itself.

3. Surface Prep: Flatness is Accuracy

A vibration sensor works by “feeling” the movement of the metal. If the sensor is sitting on a bump or a pit, it’s going to vibrate at its own frequency. We call this “resonance,” and it’s the fastest way to get a false alarm in the control room.

• Grind it Smooth: Take a grinder or a sanding block to the mounting spot. You want shiny, flat metal. Remove paint, oxidation, and pits.
• The Straightedge Test: Lay a flat edge across the spot. Can you see light underneath? If yes, it’s not flat enough.
• Leveling Glue: If the casing is too rough, use a tiny amount of high-temperature leveling adhesive. Keep the layer thin; if it’s too thick, the glue acts like a cushion and dampens the signal.

4. Fighting Back Against Vibration: Reinforcement

Blowers are loud, hot, and they shake. Bolts alone usually give up after a few months. You need a “belt and suspenders” approach.

• Threadlocker: Put a drop of high-temp threadlocker on every bolt to stop them from backing out.
• Double Nuts: If there is room, add a second lock nut for extra security.
• Manage the Cables: If the sensor cable is flapping, it will pull on the sensor. Use clamps every 50cm and leave a little loop of slack right at the sensor so the vibration doesn’t stress the connection.

5. Post-Install: Proving the Numbers

Start the blower at no load and watch the screen. Are the numbers jumping around? Are they stuck at zero? Neither is good. As you ramp up to full load, compare the STA-SZ6 data to a handheld vibration tester. If the handheld says 2.0mm/s and the sensor says 8.0mm/s, you’ve likely got a loose base or poor surface contact.

6. Summary: Keeping it Steady

The STA-SZ6 is a great sensor, but it’s only as good as the installation. If you take the time to clean the surface, torque the bolts, and manage the cables, it will give you years of clean, accurate data.

Need the real parts? If you need a genuine STA-SZ6, a specialized mounting kit, or professional advice, give us a shout. We’ve been helping power plants keep their blowers running for years.
