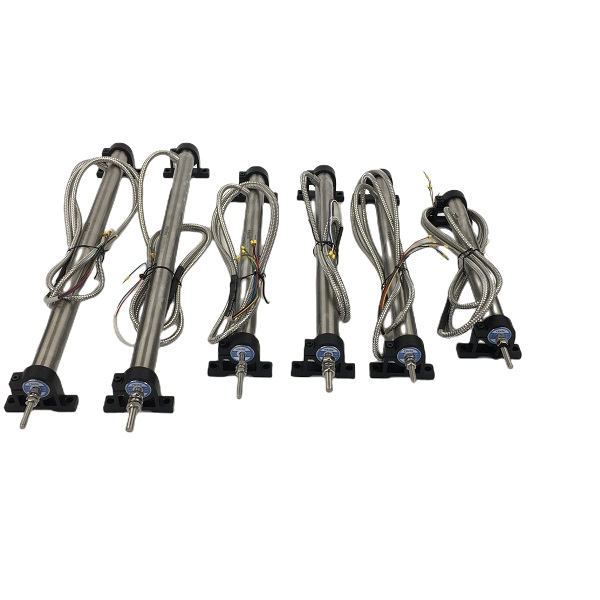

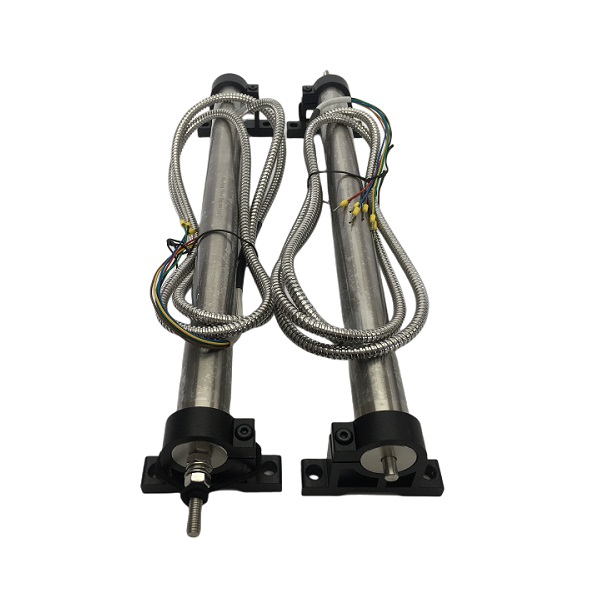

LVDT Displacement Sensor DET100A

Short Description:

The LVDT Displacement Sensor DET100A measures the displacement of mechanical components. When mechanical components are subjected to force, the components inside the sensor are affected by the magnetic field, resulting in a voltage signal. By measuring the magnitude of the voltage signal, the displacement of mechanical components can be determined.
Brand: YOYIK

Send email to us

Product Detail

The LVDT Displacement Sensor DET100A has high resolution, good sensitivity, and good anti-interference performance, making it a commonly used sensor for power plant users. In the measurement of high and medium pressure differential expansion of steam turbines in power plants, a LVDT Displacement Sensor DET100A is generally used, and the monitor has a 420mA DC output. When the high pressure differential expansion is greater than 6mm or less than 3mm, the alarm relay acts and outputs an alarm signal. When the high pressure differential expansion is greater than 7mm or less than -4mm, the danger relay acts and outputs a contact signal.

Technical parameter

Measurement range	0-100mm
Accuracy level	Multiple accuracy levels such as 0.1% are available
Power supply voltage	DC 24V
Output signals	Multiple output signals such as 4-20mA and 0-5V are available
Working temperature	-40 ℃~+215 ℃
Protection level	IP65

Application Scenario

The LVDT Displacement Sensor DET100A is widely used in the data collection of steam turbine engine oil, used to measure the stroke displacement of mechanical components and obtain the operating status data of steam turbine engine oil. According to different measurement ranges and accuracy levels, it can be applied to different types of turbine oil engines, such as small steam turbines, medium steam turbines, and large steam turbines.

In addition, the LVDT Displacement Sensor DET100A can also be applied to displacement measurement of other mechanical equipment. Its high accuracy, reliability, and good protective performance make it one of the important sensors in the field of industrial automation control and data acquisition.

LVDT Displacement Sensor DET100A is a high-precision and highly reliable sensor widely used in the field of data collection for steam turbine oil engines and displacement measurement of other mechanical equipment. Its emergence provides important technical support for industrial automation control and data collection.
