Polyester sleeve fiberglass Rope is made of polyester fiber braided casing with longitudinal alkali free glass fiber yarn inside, widely used for binding and fixing the ends of stator winding bars (or coils) of steam turbine generators, water turbine generators, and other large, medium and small motors, as well as for binding electrical windings. In the design of high-speed motors, the linear part of the coil extending out of the iron core is long, which makes the gap between the parts near the R corner of the slot coil at the end smaller, while the gap between the coils near the outer nose is especially large, so the polyester sheathed glass fiber rope is usually used for binding.
Technical parameter
| technical parameter | Standard |
| Appearance | white color, soft hand feel, no impurities |
| Volatiles (110±5℃, 1h) | 2～10% |
| Rubber Content | 35%±5 |
| Soluble Resin Content | ≥ 85% |
Product features
1. Uniform color
2. High tensile strength, good dielectric property, good flexibility, low moisture absorption, resistance to chemical attack, and low elongation.
3. Complete specifications, special sizes can be customized
Specification (mm)
Φ3、Φ5、Φ8、Φ10、Φ12、Φ16、Φ18、Φ20、Φ30、Φ40
Special specifications can be customized.
Storage and precautions
1. The Polyester sleeve fiberglass Rope shall be stored in a clean, dry and well ventilated warehouse with a temperature of 20-25 ℃.
2. The Polyester sleeve fiberglass Rope shall not be close to the fire source, heating and sunlight exposure.
3. During transportation and storage, moisture, mechanical damage and pollution shall be avoided, and special attention shall be paid to metal dust pollution to avoid affecting the insulation performance of the product.

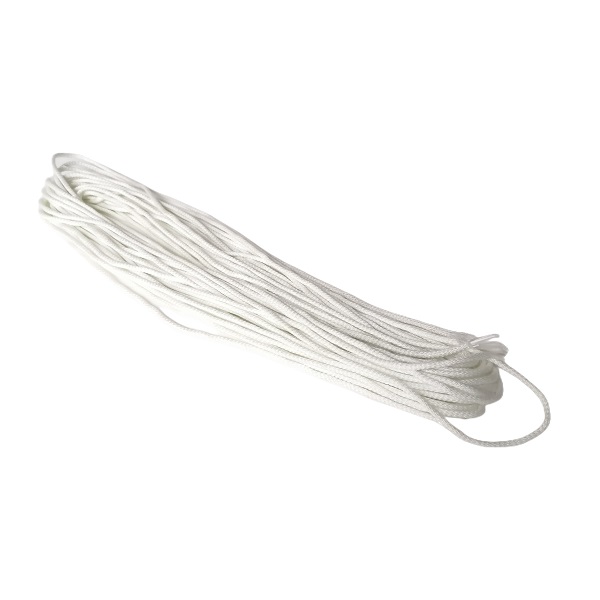

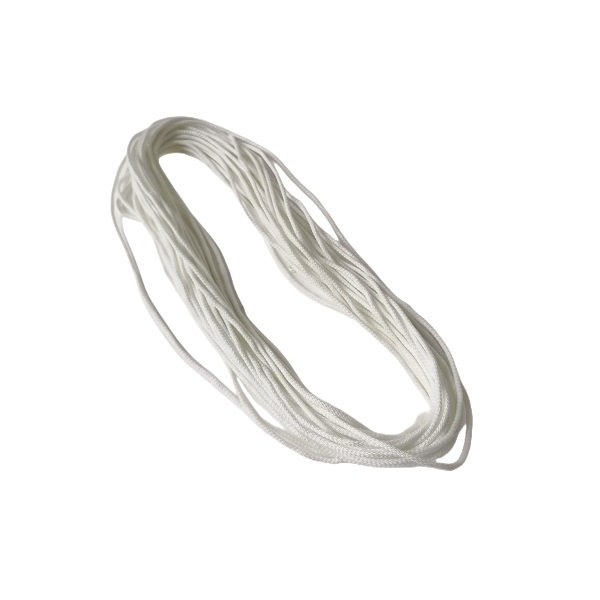

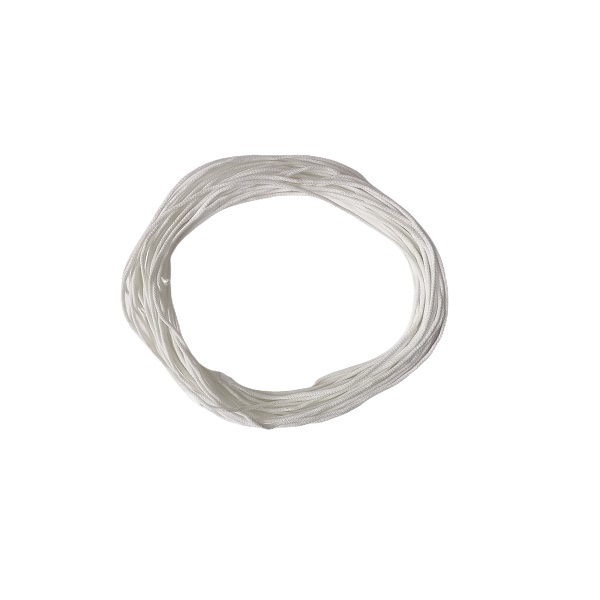

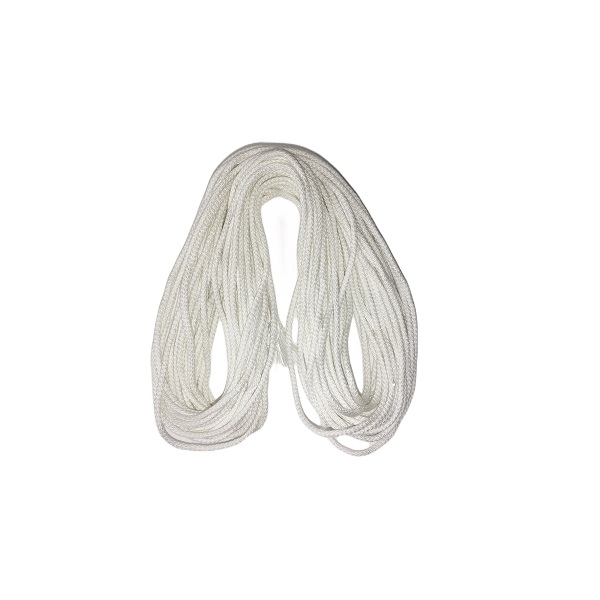

Polyester sleeve fiberglass Rope Show
