Steam Turbine Spare Parts For Planned Maintenance

The Critical Role of Steam Turbine Spare Parts in Planned Maintenance

Steam turbines are the beating heart of modern power generation plants and heavy industrial facilities. Operating under extreme thermodynamic stresses, high rotational speeds, and volatile pressure zones, these mechanical giants demand absolute precision. To prevent catastrophic failure modes, unexpected shutdowns, and massive revenue losses, power generation companies implement strict regimes of **Planned Maintenance**. Central to the success of these scheduled outages is the availability and prompt replacement of high-quality steam turbine spare parts.

Planned maintenance, or turnaround management, is not merely a routine check; it is a highly strategic operation designed to reset the wear life of the turbine. Over thousands of operating hours, components experience creep, thermal fatigue, erosion, and chemical degradation. By systematically utilizing certified replacement parts, plant operators ensure that the turbine's internal geometry, hydraulic control loops, and sensory feedback arrays conform to original equipment manufacturer (OEM) tolerances. This proactive replacement strategy dramatically improves thermal efficiency, preserves fuel resources, and guarantees safety compliance.

Commercial & Industrial Realities of Outage Management

In today's competitive energy markets, the commercial impact of turbine down-time is measured in hundreds of thousands of dollars per day. A forced outage caused by a failed sensor or clogged filter can destabilize regional grid networks and trigger heavy financial penalties. Consequently, the industrial landscape has shifted heavily toward predictive and planned maintenance. Rather than waiting for a component to fail, maintenance engineers analyze running hours, startup cycles, and real-time telemetry to schedule maintenance windows during periods of low grid demand.

However, executing a successful planned maintenance program requires a robust supply chain. Lead times for specialized turbine components can range from weeks to months. Therefore, strategic sourcing of spare parts—ranging from critical sensors to heavy structural components—must be arranged well in advance. Companies like Dongfang Yoyik provide a crucial buffer for the industry by manufacturing and stock-holding a comprehensive array of parts, ensuring that power plants can execute their maintenance schedules without costly logistical delays.

Emerging Trends: AI-Driven Predictive Maintenance and Digital Twins

The steam turbine sector is undergoing a digital revolution. Traditional time-based maintenance intervals are being integrated with data-driven predictive maintenance (PdM). Modern steam turbines are outfitted with advanced sensory arrays that constantly monitor parameters such as shaft vibration, axial displacement, bearing temperature, and oil quality. This data is fed into machine learning algorithms and "Digital Twin" models—virtual replicas of the physical turbine.

This technological integration changes how spare parts are managed. For instance, instead of replacing a speed sensor or temperature gauge purely based on elapsed years, operators can track subtle signal deviations that indicate degradation. When the AI system flags a potential anomaly, the specific spare part is ordered and queued for the next planned maintenance window. This reduces unnecessary part replacements while ensuring that components near their true end-of-life are swapped out before a failure occurs.

Deep-Dive Application Scenarios of Key Turbine Spares

1. Electro-Hydraulic Control (EHC) Systems

The Electro-Hydraulic Control (EHC) system is responsible for regulating the steam flow into the turbine by controlling the main stop valves and governing valves. Because the EHC system operates at high hydraulic pressures (often using fire-resistant phosphate ester fluids), fluid cleanliness is paramount. Even microscopic particulate contamination can cause servo valves to stick, leading to turbine overspeed or trip events.

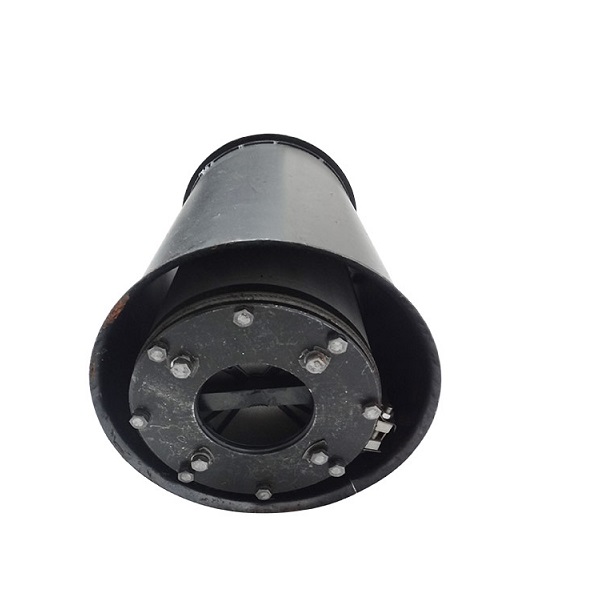

During planned maintenance, the replacement of hydraulic oil system filter elements (such as the FAX 250*10) and backwash filters (such as the ZCL-I-450) is non-negotiable. These components capture sub-micron particles and prevent varnish buildup. Concurrently, Linear Variable Differential Transformers (LVDT) like the HTD-100-3, which monitor valve stem positions, must be calibrated or replaced to ensure the control system receives precise feedback on valve openings.

2. Rotor Dynamics and Vibration Monitoring

Steam turbine rotors spin at speeds of 3000 to 3600 RPM. At these velocities, even the slightest imbalance or shaft misalignment generates massive centrifugal forces that can destroy bearings and seals. Therefore, continuous monitoring of rotor dynamics is critical.

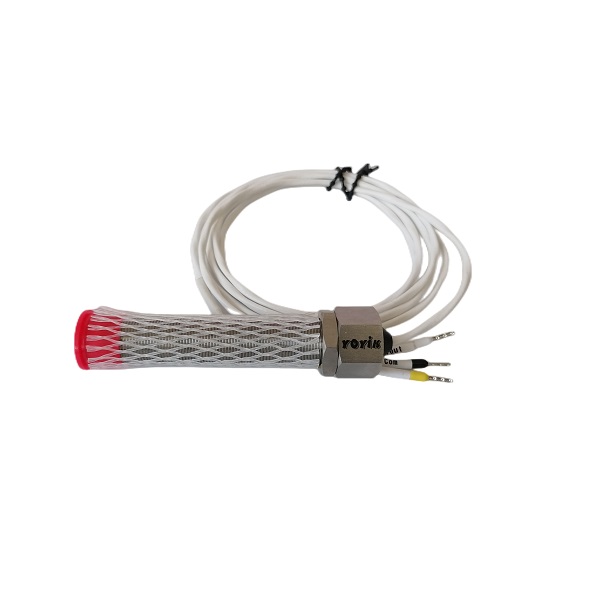

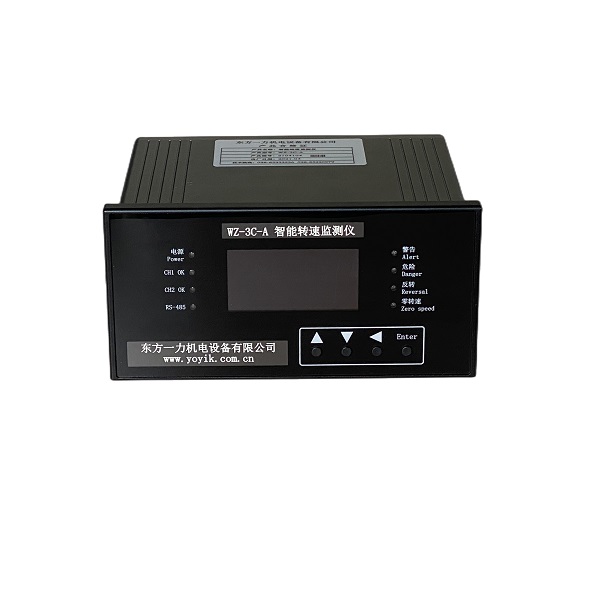

Eddy current sensors (such as the CWY-DO series) are positioned along the turbine shaft to measure radial vibration and axial displacement without physical contact. Additionally, speed sensors (such as the CS-2) and speed monitors (such as the WZ-3C-A) provide the primary inputs for the turbine's overspeed protection system. During a planned outage, these sensory loops are tested, calibrated, and replaced if any signal drift is detected, securing the turbine against catastrophic run-away scenarios.

3. Thermal and Pressure Monitoring Systems

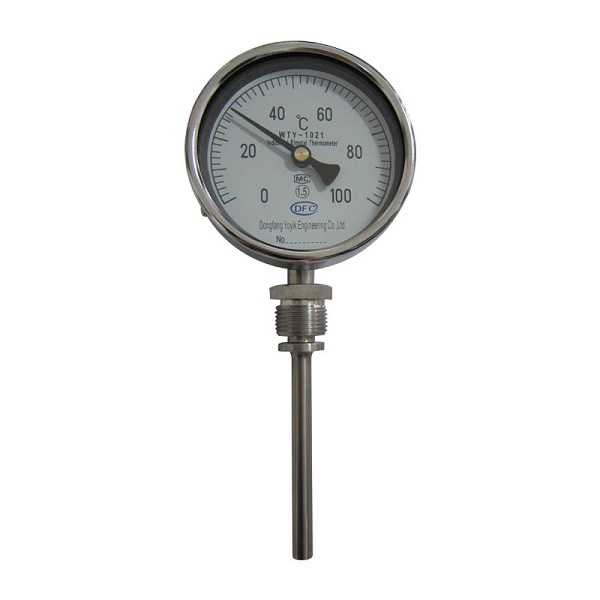

Managing the thermal gradient across the turbine casing is essential to prevent thermal warping and cracking. Bimetal thermometers (such as the WTYY series) provide localized, reliable temperature readings of bearing oil, casing metal, and steam paths. In the boiler-turbine loop, air pressure samplers (such as the PFP-B-II) prevent blockages in pressure sensing lines, ensuring that control systems receive accurate data regarding steam and combustion dynamics.
