Industrial water filter KLS-100I plant Stator cooling water system filter element

Short Description:

The main function of stator cooling water filter element KLS-100I is to filter impurities and pollutants in stator cooling water and protect the normal operation of stator and cooling system. In equipment such as generators, the stator is an important component, and its cooling water needs to be filtered through a filter element to ensure that impurities such as particles, sand, and rust in the cooling water do not cause damage to the stator, and can also extend the service life of the stator cooling system.
Brand: YOYIK

Product Detail

The water filter KLS-100I of stator cooling water filter is usually made of high-efficiency filter material, which can effectively filter the small particles and pollutants in the cooling water. At the same time, it has certain corrosion resistance, and can operate stably for a long time under the environment of high temperature and pressure. Regular replacement of the stator cooling water filter element can ensure the normal cooling and operation of the stator and reduce the maintenance and replacement costs.

Technical Parameter

Style Barrel
Applicable medium stator cooling water
Working temperature -15 ℃ -100 ℃
Material stainless steel
Filtering accuracy 10 μ m
Raw water pressure: 320KG/c㎡


1. Regular replacement of water filter KLS-100I: Regular replacement of filter element can ensure the filtration effect of cooling water and prolong the service life of the motor. It is recommended to replace the filter element every quarter.

2. Cleaning the water filter KLS-100I: If the dirt on the filter element is not very serious, it can be considered to clean the filter element. Take out the filter element, rinse it with clean water, and then install it back.

3. Check the installation of the water filter KLS-100I: After replacing the filter element, be sure to check whether the filter element is installed correctly and there is no looseness or leakage. Otherwise, it will affect the normal circulation of stator cooling water.

4. Check the quality of cooling water: Regularly check the quality of cooling water, and if any water quality issues are found, replace the cooling water in a timely manner.

5. Check the cooling system: Regularly check the working status of the cooling system to ensure smooth circulation of cooling water and prevent water blockage or leakage.

Generator Stator Cooling Water Filter Element KLS-125T/20 Show

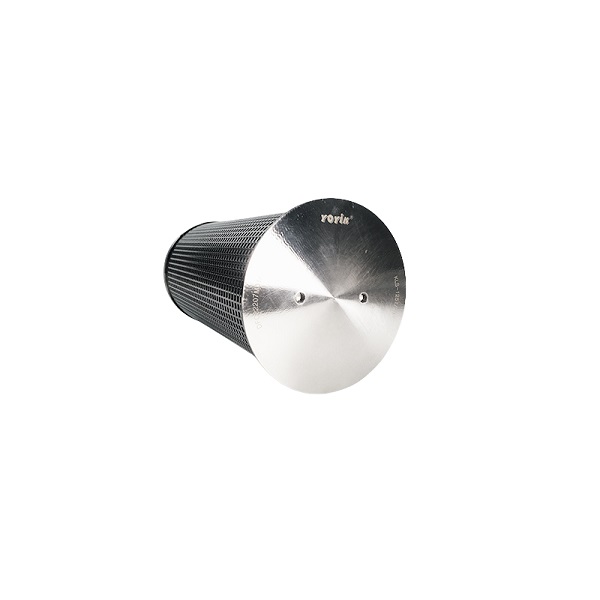

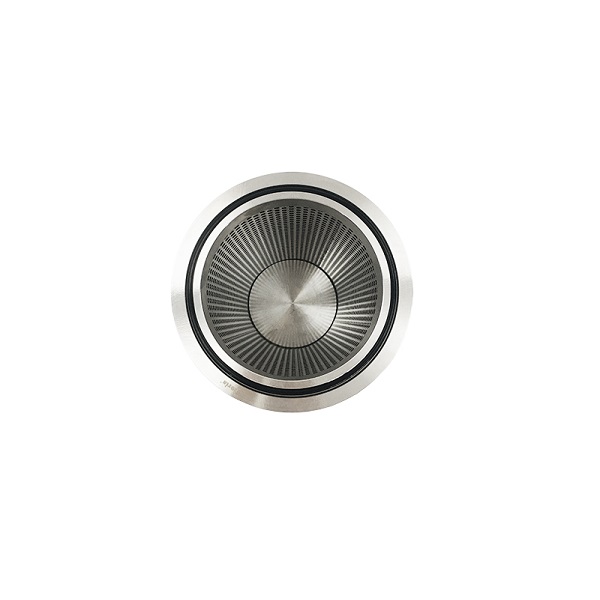

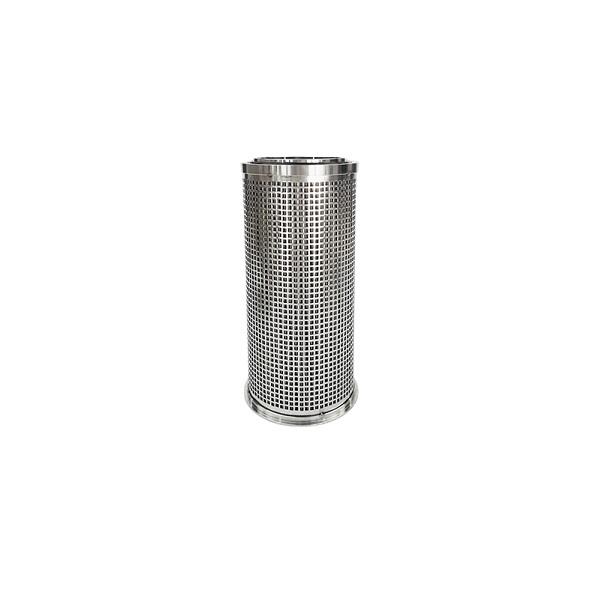

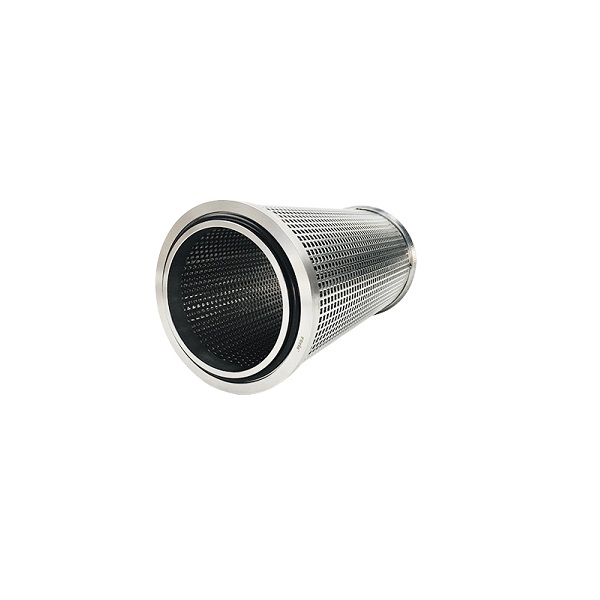

water filter KLS-1001 (3) water filter KLS-1001 (5) water filter KLS-1001 (4) water filter KLS-1001 (1)
