generator stator cooling water filter element KLS-125T/20

Short Description:

The generator stator cooling water filter element KLS-125T/20 is used to filter impurities in the generator stator cooling water system. The stator cooling water system can continuously flow the cooling water (pure water) through the stator coil, so as to take away the heat caused by the loss of the generator stator coil, so as to ensure that the temperature rise (temperature) of the stator coil meets the relevant requirements of the generator operation. In order to ensure the cleanness of the cooling water pipe and prevent blockage, the generator stator cooling water filter element KLS-125T/20 is usually used to filter water to ensure clean water quality.


Product Detail

The generator stator cooling water filter element KLS-125T/20 is installed in the filter of stator cooling water pump, which has good performance of acid resistance, alkali resistance, low temperature resistance, fire resistance and water resistance. The filter is an advanced and easy to operate water filter, and an electric motor drives the automatic cleaning device. The water enters the coarse filter screen from the inlet, and then flows out through the fine filter screen from the inside out. The filtered impurities accumulate on the surface, causing the increase of the differential pressure. The coarse filter screen is designed to protect the cleaning device, which is damaged by large particles. When the preset pressure difference or time expires, the filter will start the automatic cleaning process. Filter cleaning is carried out through a rotary suction scanner, which sucks impurities away from the filter screen and discharges them through the drain valve. The whole process lasts about 15~40 seconds and flows continuously.

Main parameters

The Main Parameters Of Generator Stator Cooling Water Filter Element KLS-125T/20:

Operating temperature: 100 ℃

Working pressure difference: 32MPa

Filtering precision: 60 mesh

Inlet and outlet diameter: 45mm

Performance: acid resistance, alkali resistance, low temperature resistance, fire resistance and water resistance

Raw water pressure: 320KG/c㎡

Filter area: 2.65

Test Standard: DFB5825.1-2003

Generator Stator Cooling Water Filter Element KLS-125T/20 Show

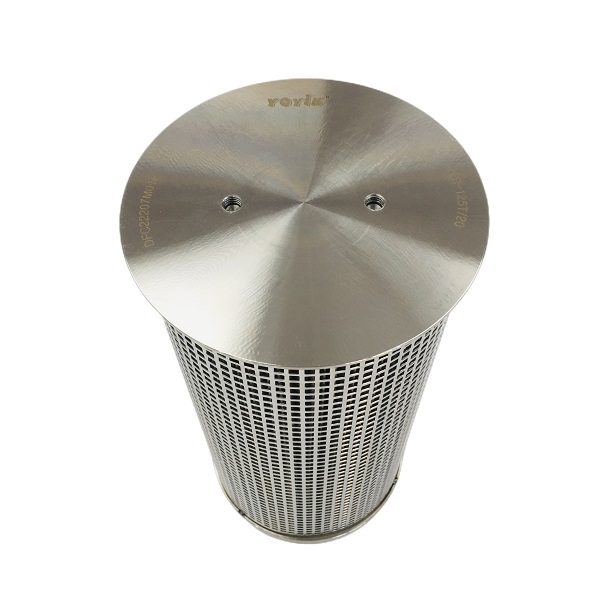

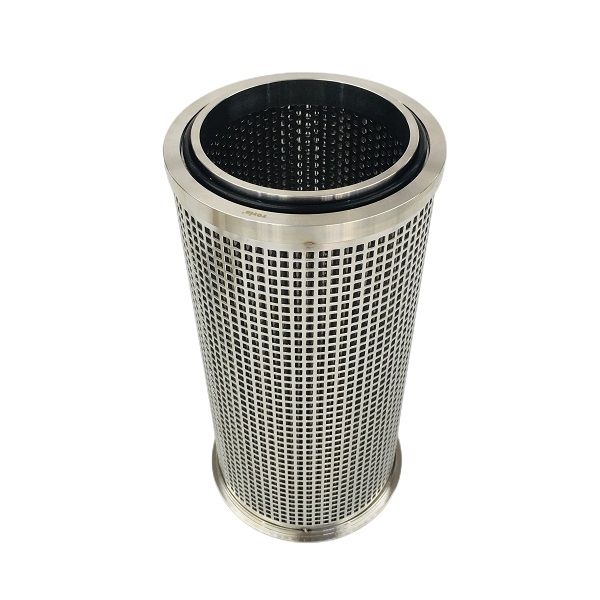

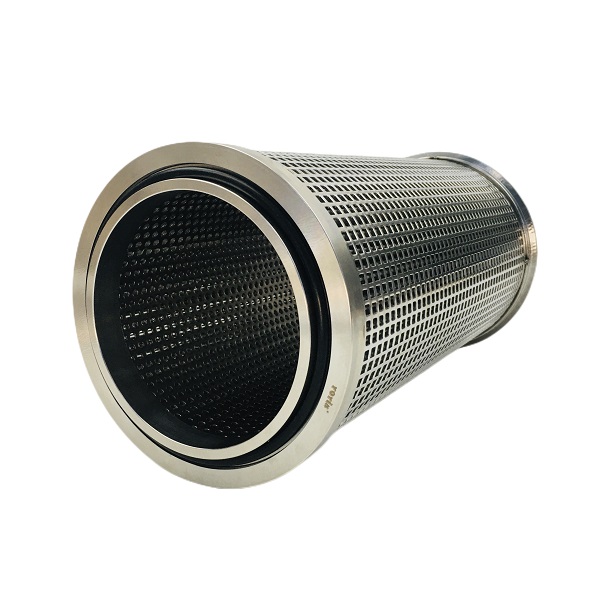

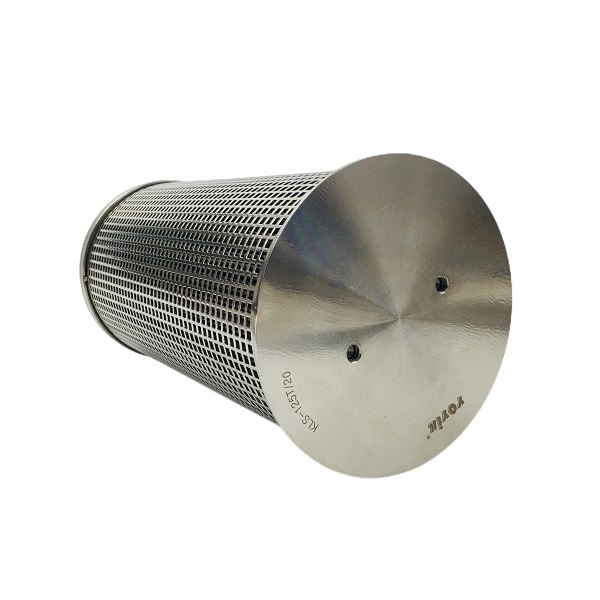

generator stator cooling water filter element KLS-125T20 (1) generator stator cooling water filter element KLS-125T20 (2) generator stator cooling water filter element KLS-125T20 (3) generator stator cooling water filter element KLS-125T20 (4)
