Product Features
The compressed air filter element LX-FF14020044XR can effectively filter and condense harmful pollutants such as oil, water, and dust in compressed air, and the quality of the processed compressed air fully meets the requirements of use.
Characteristics of filter element LX-FF14020044XR:
1. Easy to install, easy to replace filter element;
2. The filter element is corrosion-resistant and has a long lifespan
3. High purification efficiency, large dust capacity and small Friction loss.
Technical parameter
| Precision | 1 μ M |
| Material | Glass fiber |
| Flow rate | 2.3m3/h |
| Working pressure | 0.8MPA |
| Inlet temperature | ≤ 66 ℃ |
| Intake oil content | ≤ 0.01ppm |
Product structure
1. The self-positioning support arm of the compressed air filter element LX-FF14020044XR makes the installation and disassembly of the filter element more convenient and stable.
2. Non-woven glass fiber pre filtration material provides protection against bidirectional airflow, which can increase the strength of the filter element and extend its service life.
3. The compressed air filter element LX-FF14020044XR adopts a new type of Ultrasonic welding. Under the condition of higher tensile strength combined with the anti-entrainment layer, it really realizes a solid and homogeneous joint.
4. The anti-pinch layer is chemically treated and designed in a customized manner. It can collect large condensed droplets from the filter material and quickly discharge them into a reliable space in the filter cup, preventing droplet entrainment.
5. The compressed air filter element LX-FF14020044XR is supported by a double-layer stainless steel orifice plate, which will not cause corrosion and has a bidirectional pressure resistance of 5bar. The high flow filter element is additionally supported by a stainless steel spiral spring, which can rely on its own strength to ensure no damage or deformation when the airflow is unbalanced and the pressure is unstable.

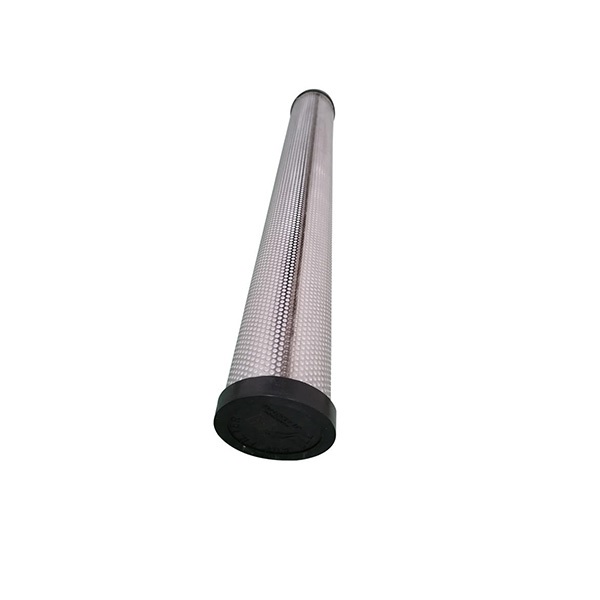

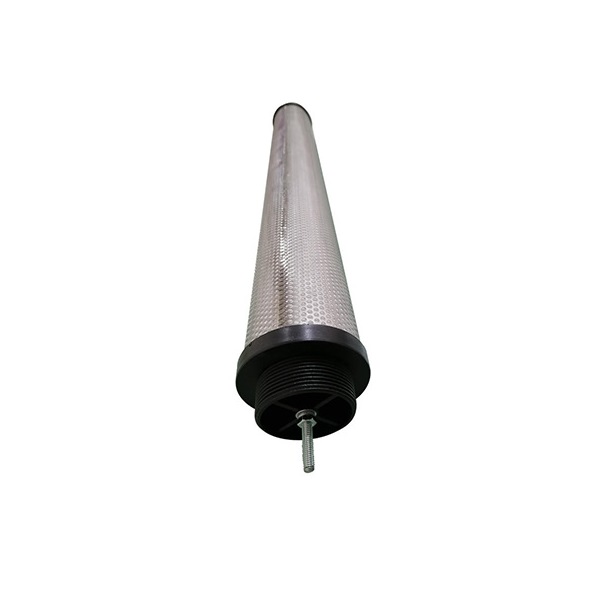

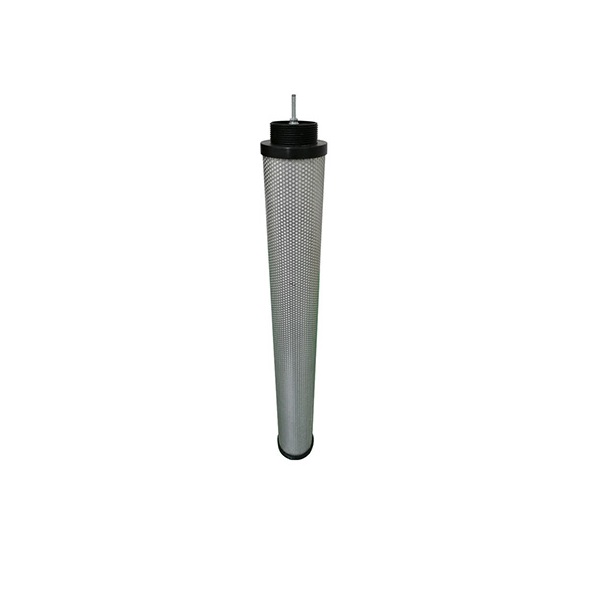

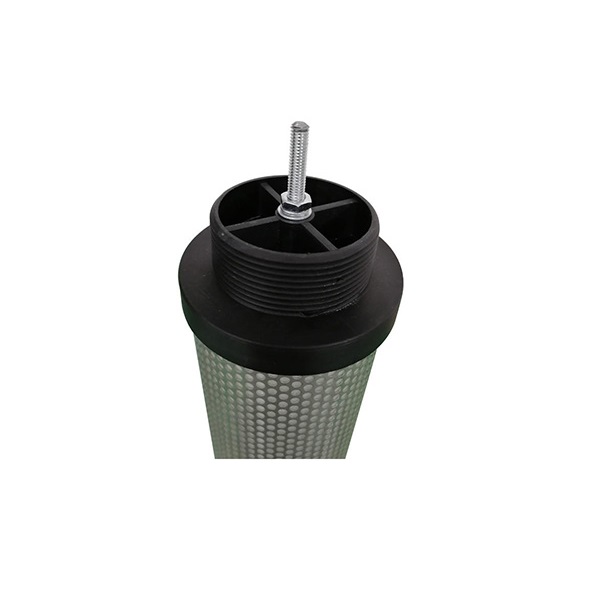

Compressed Air Filter Element LX-FF14020044XR Show
