Deep-Dive Analysis: Bearing in Turbine for Marine Propulsion
Marine propulsion systems represent the pinnacle of heavy maritime engineering, driving massive merchant container vessels, naval defense fleets, liquid natural gas (LNG) carriers, and cruise liners across the world's oceans. At the heart of these massive vessels are steam and gas turbines, which convert thermal energy into rotational kinetic force with high efficiency. Within these high-speed, high-temperature machines, the bearing in turbine for marine propulsion plays a critical, non-negotiable role. Turbine bearings must support extreme radial and axial loads, minimize friction, prevent catastrophic rotor instability, and survive the harsh marine environment characterized by constant vessel motion, high humidity, and potential seawater contamination.
The Critical Role of Fluid Film Bearings in Marine Propulsion
Unlike industrial land-based turbines that operate on stable concrete foundations, marine turbine propulsion units operate on a floating, twisting platform. This demands specialized bearing configurations:
1. Hydrodynamic Journal Bearings
Radial journal bearings, specifically tilting-pad journal bearings (TPJBs), are widely utilized in marine propulsion turbines. Under high-speed operations, standard sleeve bearings are susceptible to oil whip and oil whirl—destructive hydrodynamic instabilities that can destroy a turbine rotor within seconds. Tilting-pad bearings mitigate this by allowing each pad to pivot independently, creating a converging oil wedge that applies stabilizing forces back onto the shaft. This ensures smooth operation even when the vessel encounters heavy sea states.
2. Tilting Pad Thrust Bearings
Marine turbines generate immense axial thrust as steam or gas expands through the turbine stages, coupled with the reaction force transmitted from the ship's propeller. Tilting-pad thrust bearings (often referred to as Kingsbury or Mitchell thrust bearings) are crucial to absorb these massive axial forces. By distributing the load across multiple self-aligning tilting pads, they maintain a continuous hydrodynamic oil film, preventing metal-to-metal contact even under fluctuating load conditions during ship maneuvers.
3. Babbitt Alloy Linings
High-grade Babbitt alloy (often tin-based white metal) remains the industry standard lining material for marine turbine bearings. Its unique metallurgical properties provide excellent embeddability (the ability to absorb small abrasive particles without scratching the rotor shaft) and conformability (the ability to deform slightly to accommodate minor misalignment). Yoyik provides specialized Babbitt alloy bearing manufacturing and repair services to meet these precise marine tolerances.
Technical Challenges Unique to Marine Environments
Operating turbine bearings at sea introduces a set of challenges that are completely absent in land-based power plants:
Dynamic Gyroscopic Loads & Hull Deflections
As a ship pitches, rolls, and yaws in rough seas, the turbine shaft experiences dynamic gyroscopic forces. Simultaneously, the ship's hull flexes under loading and wave action, altering the alignment between the turbine, gearbox, and propeller shaft. Bearings must be designed with sufficient damping capacity and flexibility to absorb these transient forces without wiping the Babbitt metal.
Water Contamination Risks

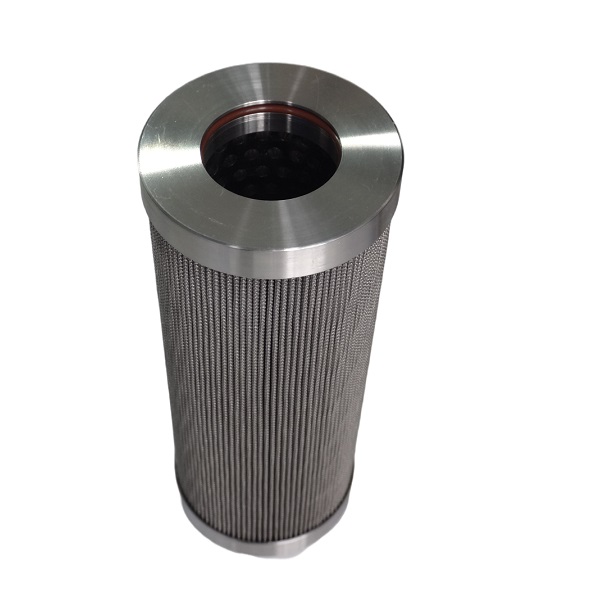

The proximity to seawater makes moisture contamination in the lubrication oil system a constant threat. Even minor water ingress reduces oil film thickness, leads to boundary lubrication, and causes corrosion. Efficient oil conditioning and high-precision filtration, using components like Yoyik's actuator oil filters, are critical to protect the bearing surfaces.
Deep-Dive Application Scenarios in Marine Propulsion
Turbine bearings are deployed across several distinct machinery configurations within modern marine vessels:
Main Propulsion Steam Turbines (LNG Carriers)
Liquefied Natural Gas (LNG) carriers often utilize steam turbine propulsion systems fueled by boil-off gas (BOG). In these systems, the main steam turbine operates continuously for weeks during transoceanic voyages. The bearings must maintain stability at speeds of 5,000 to 10,000 RPM while supporting heavy rotor shafts. Temperature sensors, such as the WTYY series Bimetal Thermometers, are embedded in the bearing pads to monitor thermal fluctuations in real time, preventing thermal runaway.
Gas Turbine Propulsion (Naval Vessels)
Modern naval frigates and destroyers utilize gas turbines (such as COGAG or CODAG configurations) for high-speed sprint capabilities. Gas turbine bearings must operate under extreme thermal conditions, as gas turbines run significantly hotter than steam turbines. The thrust bearings must withstand rapid acceleration cycles, requiring advanced synthetic lubricants and rapid-response flow control servo valves to ensure consistent oil supply.
Auxiliary Turbines and Turbochargers
Beyond main propulsion, auxiliary steam turbines drive cargo oil pumps, boiler feed pumps, and shipboard generators. Additionally, large two-stroke marine diesel engines rely on exhaust gas turbochargers. The bearings in these turbochargers operate at ultra-high speeds (exceeding 20,000 RPM) and demand specialized hydrodynamic floating bush bearings or hybrid ceramic ball bearings to minimize drag and withstand high temperatures.
Commercial Status, Market Trends, and Future Innovations
The commercial landscape of marine propulsion is shifting rapidly, driven by the International Maritime Organization's (IMO) strict decarbonization goals (IMO 2030 and 2050). These regulations are pushing manufacturers to optimize every fraction of efficiency within the propulsion train.
1. Smart Bearings and IoT Predictive Maintenance
Unplanned downtime at sea is extremely costly and logistically challenging. The marine industry is rapidly adopting "Smart Bearings" equipped with integrated sensors. By embedding temperature sensors, proximity probes for oil film thickness measurement, and acoustic emission sensors directly into the bearing housing, operators can perform predictive maintenance. Instead of opening bearings for inspection during scheduled dry-docking, real-time data determines when maintenance is required.
2. Active Magnetic Bearings (AMBs)
For naval applications and high-speed auxiliary turbines, Active Magnetic Bearings are emerging as a game-changing technology. By levitating the turbine shaft in an electromagnetic field, AMBs completely eliminate mechanical friction, wear, and the need for complex oil lubrication systems. This not only reduces the vessel's weight but also eliminates the risk of oil leaks, aligning with modern environmental mandates.
3. Environmentally Acceptable Lubricants (EALs)
Vessels operating in regulated waters must use Environmentally Acceptable Lubricants (EALs) to prevent pollution in case of stern tube or thruster seal failure. The transition to biodegradable synthetic lubricants has forced bearing designers to re-engineer pad geometries and material formulations to compensate for the different viscosity indexes and load-carrying characteristics of EALs compared to traditional mineral oils.
