Industrial Demands for Babbitt Bearing Replacement in Extreme Environments
In modern heavy industry, rotating machinery operates under increasingly severe parameters. Whether it is a 1000MW supercritical steam turbine in a thermal power plant, a high-load grinding mill in a mining facility, or a high-velocity compressor in a petrochemical complex, the reliability of hydrodynamic bearings is paramount. Babbitt bearing replacement is not merely a maintenance routine; it is a critical engineering process that determines the operational safety, efficiency, and lifespan of multi-million dollar assets.
Extreme environments present a combination of challenges: elevated operational temperatures exceeding 100°C, high surface speeds, heavy dynamic shock loads, and potential chemical contamination from the surrounding process loop. Under these conditions, the Babbitt alloy (typically tin-based or lead-based formulations) acts as a sacrificial yet highly durable interface. It provides excellent conformability, embeddability (the ability to absorb foreign abrasive particles without scoring the shaft), and boundary lubrication properties. When these bearings experience wear, fatigue, or thermal degradation, choosing the correct replacement methodology is vital to prevent catastrophic shaft failures.
The Tribological Mechanism of Tin-Based Babbitt Alloys
Tin-based Babbitt alloys (such as ASTM B23 Grade 2 or Grade 3) are favored in extreme environments over lead-based alternatives due to their superior load-carrying capacity, corrosion resistance, and thermal conductivity. The microstructure of these alloys consists of hard cuboids of antimony-tin (Sb-Sn) embedded in a soft, ductile tin-rich matrix. The hard crystals support the load, while the soft matrix yields to accommodate misalignment and provides channels for lubricant flow. When operating under extreme pressures, local micro-welding can occur if oil films break down. Tin-based Babbitt prevents catastrophic seizing by melting locally at a relatively low temperature, protecting the expensive forged steel rotor shaft from severe scoring.
The Company
Dongfang Yoyik (Deyang) Engineering Co., Ltd. founded in 2004, is located in Deyang, Sichuan, heavy industry base of China. YOYIK is manufacturer and trader of industrial products, integrating design, R & D, production, sales and service. The team has more than 20 professional technicians and experienced sales to provide you with professional, reliable and considerate services.
Our major products and service: steam turbine spare parts, steam turbine generator spare parts, utility boiler spare parts, control system parts, hydraulic components, pneumatic components, filters, filter elements, EH system accessories, bolt heaters, insulating materials, sealant, Babbitt alloy bearing, DC motor / AC motor accessories, motor repair, etc. Our products cover different fields such as thermal power generation, hydropower generation, minerals, chemicals, paper mills, ships, etc., and are sold to more than 30 countries and regions in Europe, Southeast Asia, South America, and Africa.
The rapid development of YOYIK has received strong support from all walks of life. The needs of our users are our reasons for existence. Our philosophy is to always care about user needs and help users solving issues.
Why Choose Us
- Rich experience: spare parts expert in power industry since 2004.
- Powerful enterprise: one-step service for industrial traders and users.
- Wide range of products: over 3000 types of spare parts at your choice.
- Professional service: experienced and skilled engineers, intellectual property patents.
- Advanced equipment: high-tech production equipment and professional testing devices.
Babbitt Bearing Replacement Methodologies for Extreme Environments
To ensure that a Babbitt bearing survives extreme environments, the replacement process must adhere to strict metallurgical and machining standards. The two primary methods for applying Babbitt alloy to the backing shell (typically steel, cast iron, or bronze) are static casting and centrifugal casting.
1. Centrifugal Casting vs. Static Casting
For high-speed, heavy-duty applications such as steam turbine generator bearings, centrifugal casting is the gold standard. During this process, the preheated bearing shell is mounted on a spinning machine. As the molten Babbitt alloy is poured, centrifugal forces push the denser, higher-strength constituents to the outer perimeter, eliminating porosity, gas pockets, and impurities. This results in a highly dense, uniform grain structure with superior bond strength between the Babbitt layer and the backing shell.
Static casting, while simpler, is reserved for complex geometries or split bearings where centrifugal rotation is impractical. In static casting, precise temperature control of both the alloy and the shell is critical to prevent premature cooling, which can cause laminations, voids, and poor bonding.
2. Bond Integrity and Ultrasonic Testing (UT)
In extreme environments, a weak bond between the Babbitt and the backing shell is a recipe for disaster. Thermal stresses and dynamic loads will quickly cause the Babbitt layer to fatigue, crack, and delaminate. To prevent this, YOYIK utilizes advanced surface preparation techniques, including chemical pickling and tin-plating (tinning), to establish a chemical bond. Following the casting process, we conduct 100% Ultrasonic Testing (UT) in accordance with ISO or ASTM standards to verify that the bond area meets the highest integrity levels, ensuring zero voids or delamination.
3. Precision Machining and Hand Scraping
Once cast, the bearing is machined on high-precision CNC lathes and boring mills to achieve the exact clearances required for hydrodynamic lubrication. In specialized or critical applications, experienced technicians perform hand scraping. Hand scraping creates micro-reservoirs on the Babbitt surface, which retain lubricating oil during startup and shutdown phases when the hydrodynamic oil film has not yet fully established. This drastically reduces wear during transient operational periods.
Services
As manufacturer
YOYIK has strong strength in technical force and processing capabilities, fully equipped with CNC lathes, machining centers, vertical lathes, CNC boring machines, gantry planers, gantry milling machines, 80mm plate rolling machines, etc. We have provided high-quality equipment selection, construction design, installation and commissioning, after-sales service for the overhaul and technical transformation of hundreds of thermal power plants, hydropower stations, and metallurgical enterprises, and quickly and accurately provided a large number of steam turbines, generators, boilers and other spare parts.
As trader
YOYIK provides a large number of imported NUGENT diatomite filters and other products for many steam turbine generator main engine suppliers and power plants and other industrial users. The company has great advantages in the price and delivery time of many hydraulic products, including pumps, valves, sealing materials, etc. The brands cover EATON, VICKERS, MOOG, STAR, COPALTITE, TEMP-TITE, 707, etc.
As service provider
With more than 17 years of experience in supplying various area of industrial products, YOYIK provides reliable solutions for the multi-factory, multi-channel and multi-brand product needs of large-scale manufacturing, large-scale trading enterprises. We have a special information management system to achieve efficient cooperation with suppliers and logistics. With many years of experience, channels and resources in export business, aiming at improving efficiency and reducing costs, we provide customers with the best choice for purchasing and reduce your worries in the process.
Modern Trends: Smart Bearings and Real-Time Monitoring
As industries transition towards Industry 4.0 and predictive maintenance, Babbitt bearings are no longer passive components. Today, Babbitt bearing replacements for extreme environments are designed as "smart bearings." By integrating high-precision temperature sensors, such as the WZPM2-001 PT100 Platinum thermal resistance Thermocouple or the RTD thermocouple temperature sensor probe WZP2-231, operators can monitor the temperature of the Babbitt face in real-time.

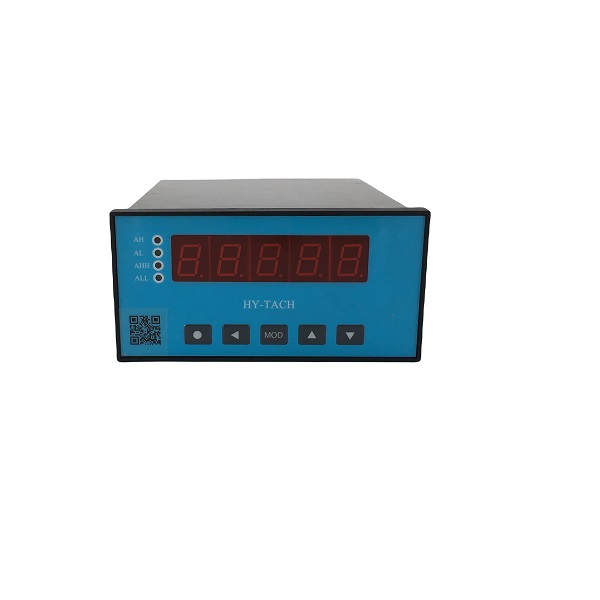

Temperature spikes are the earliest indicators of oil film degradation, bearing overload, or misalignment. Combining these temperature sensors with vibration transmitters and speed sensors (such as the Magnetic Rotation Speed Sensor ZS-01 and the Intelligent Speed monitor HY-TACH) allows for complete, real-time diagnostic monitoring of rotating machinery. This proactive approach prevents catastrophic bearing failures, minimizes unplanned downtime, and optimizes maintenance schedules.
Optimizing Lubrication Filtration in Extreme Environments
Even the best Babbitt alloy cannot survive without a clean oil film. In extreme environments, particulate contamination and moisture ingress are common threats. Implementing high-efficiency filtration systems, using advanced filter elements like the Filter element HDX-160×20Q2 or the Steam turbine actuator oil filter DL004001, is essential. Keeping the lubrication oil clean ensures that the hydrodynamic lift is maintained, preventing metal-to-metal contact and significantly extending the service life of both the Babbitt bearing and the rotor shaft.
