Actuator Inlet Flushing Oil Filter DP301EA01V/-F

Short Description:

The characteristics of hydraulic motors are high output, high-speed operation, and small size, which are not possessed by other actuators such as electric motors. Therefore, in the current steam turbine control system, the hydraulic actuator is a unique actuator that drives the regulating valve. The importance of hydraulic engines is self-evident. In order to extend the service life of the hydraulic motor and improve its efficiency, the actuator inlet flushing oil filter DP301EA01V/-F can be used.
Brand: YOYIK

Product Detail


The filter element DP301EA01V/-F is a flushing filter element for hydraulic servomotors, which can adsorb and remove impurities in the operating oil, assist in reducing acid value, improving demulsification resistance, and protect the operation of servo valves, control valves, and other equipment in hydraulic servomotors. With the development of steam turbines towards higher power and higher parameters, the working environment of hydraulic servos has become increasingly complex and demanding. The temperature borne by the spring cylinder of hydraulic servos can reach 160 ℃, and the temperature at the nut connecting the hydraulic servos and valves is even higher. This also leads to a higher temperature of the hydraulic oil during operation. The high temperature and high pressure operating conditions have a significant impact on the hydraulic oil quality, sealing performance, and other aspects. The filter element produced by our company can effectively solve this problem.

Technical Parameter

Working temperature 80-100 ℃
Maximum working pressure difference 32MPa
Filtering accuracy 1
Inlet and outlet diameter 45mm
Material stainless steel
Performance acid and alkali resistance, low temperature resistance, fire resistance, and waterproofing
Raw water pressure 320KG/c ㎡
Filter area 2.65


Reminder: Under high load operation, the filtering efficiency of actuator inlet working oil filter will decrease over time. It is necessary to clean and replace it in a timely manner. If you have any questions, please do not hesitate to contact us, and we will patiently answer them for you.

Actuator Inlet Flushing Oil Filter DP301EA01V/-F Show

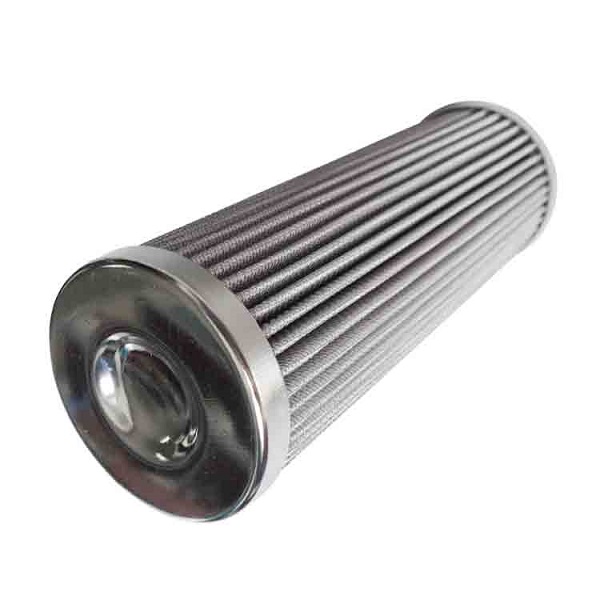

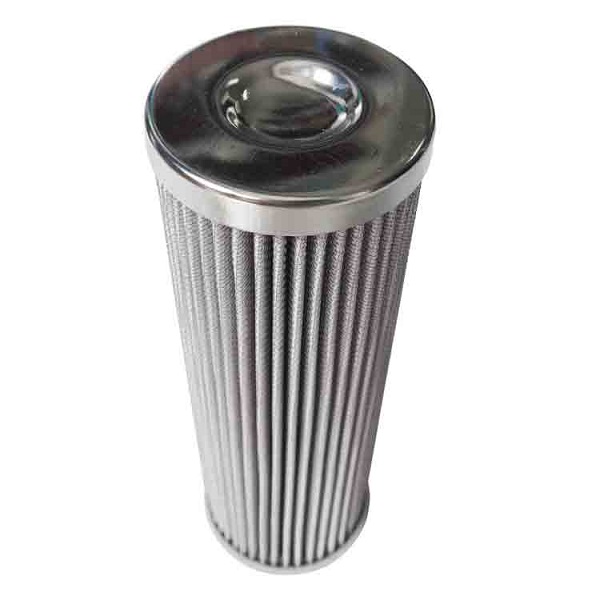

actuator inlet flushing oil filter DP301EA01V-F (4) actuator inlet flushing oil filter DP301EA01V-F (3) actuator inlet flushing oil filter DP301EA01V-F (2) actuator inlet flushing oil filter DP301EA01V-F (1)
