Critical Components for Emergency Turbine Restoration
When emergency repairs strike, speed and component compatibility are non-negotiable. Explore our leading components optimized to work alongside high-grade steam turbine bearing materials.
The Critical Role of Steam Turbine Bearing Materials in Emergency Repairs
In the heavy power generation sector, steam turbines stand as the colossal hearts of thermal, nuclear, and geothermal energy plants. Operating at rotational speeds typically ranging from 3,000 to 3,600 RPM, these machines subject their internal components to extreme thermal expansion, intense mechanical load, and constant vibrational stress. Within this hostile operational environment, the journal and thrust bearings act as the critical interfaces that support the rotor and ensure smooth energy conversion. When a bearing fails, the result is an immediate forced outage, costing utilities hundreds of thousands of dollars per day in lost generation revenue. Consequently, having immediate access to the correct steam turbine bearing material for emergency repairs is vital to restoring operations swiftly and safely.
During an emergency shutdown, engineers do not just need any replacement; they require bearing materials that offer superior embeddability, high conformability, and excellent thermal conductivity. Selecting the wrong grade of alloy or a substandard composite can lead to premature wear, shaft scoring, or catastrophic oil film breakdown upon restart.
Understanding Babbitt Metal: The Industry Gold Standard
For more than a century, Babbitt metal (often referred to as white metal) has remained the premier material for steam turbine journal bearings. Invented by Isaac Babbitt in 1839, this alloy family typically consists of tin or lead, alloyed with copper and antimony. For high-speed, high-load turbine applications, tin-based Babbitt (such as ASTM B23 Grade 2 or ISO 4381 SnSb8Cu4) is universally preferred over lead-based alternatives. Tin-based Babbitt offers excellent corrosion resistance, superior fatigue strength, and the unique ability to "give way" under localized pressure, protecting the expensive forged steel rotor shaft from score marks if lubrication is temporarily compromised.
Deep-Dive Scenarios: When and How Emergency Bearing Repairs Occur
Emergency bearing failures are rarely random; they are usually the culmination of specific operational anomalies. Understanding these scenarios allows maintenance teams to prepare the exact bearing materials and machining tools beforehand.
Scenario A: Lubrication Film Breakdown (Oil Whip and Whirl)
Steam turbine bearings rely on a hydrodynamic oil film to lift the rotor shaft off the bearing surface. If the oil supply pressure drops, or if the oil becomes contaminated with water or particulates, the hydrodynamic lift fails. The resulting metal-to-metal contact generates extreme localized heat, melting the Babbitt lining in seconds. In this emergency scenario, the bearing shell must be extracted, the damaged white metal melted out, and a fresh layer of high-purity tin-based Babbitt cast onto the backing shell via centrifugal casting or manual thermal spray.
Scenario B: Foreign Object Damage and Particulate Scoring
Despite complex filtration systems, fine metallic debris or hard oxides from the boiler piping can find their way into the lube oil console. When these particles enter the microscopic clearance between the journal and the bearing (often less than 100 microns), they embed themselves into the soft Babbitt material. While this embeddability is a protective feature designed to save the rotor, excessive contamination eventually turns the bearing surface into an abrasive lap, causing rapid wear. Emergency repairs in this context involve skimming the bearing surface on a lathe or completely rebabbitting if the depth of the scores exceeds safety margins.
Modern material science is driving the evolution of turbine bearings. While traditional Babbitt remains dominant, manufacturers are increasingly adopting polymer-lined bearings (utilizing PEEK or PTFE composites) for specialized auxiliary pumps and thrust pads. These materials offer dry-running capabilities during startup and are immune to oil-borne chemical corrosion.
The Company
Dongfang Yoyik (Deyang) Engineering Co., Ltd. founded in 2004, is located in Deyang, Sichuan, heavy industry base of China. YOYIK is manufacturer and trader of industrial products, integrating design, R & D, production, sales and service. The team has more than 20 professional technicians and experienced sales to provide you with professional, reliable and considerate services.
Our major products and service: steam turbine spare parts, steam turbine generator spare parts, utility boiler spare parts, control system parts, hydraulic components, pneumatic components, filters, filter elements, EH system accessories, bolt heaters, insulating materials, sealant, Babbitt alloy bearing, DC motor / AC motor accessories, motor repair, etc. Our products cover different fields such as thermal power generation, hydropower generation, minerals, chemicals, paper mills, ships, etc., and are sold to more than 30 countries and regions in Europe, Southeast Asia, South America, and Africa.
The rapid development of YOYIK has received strong support from all walks of life. The needs of our users are our reasons for existence. Our philosophy is to always care about user needs and help users solving issues.
Why Choose Us
Rich experience: Spare parts expert in power industry since 2004.
Powerful enterprise: One-step service for industrial traders and users.
Wide range of products: Over 3000 types of spare parts at your choice.
Professional service: Experienced and skilled engineers, intellectual property patents.
Advanced equipment: High-tech production equipment and professional testing devices.
Our Dedicated Services
As Manufacturer
YOYIK has strong strength in technical force and processing capabilities, fully equipped with CNC lathes, machining centers, vertical lathes, CNC boring machines, gantry planers, gantry milling machines, 80mm plate rolling machines, etc. We have provided high-quality equipment selection, construction design, installation and commissioning, after-sales service for the overhaul and technical transformation of hundreds of thermal power plants, hydropower stations, and metallurgical enterprises, and quickly and accurately provided a large number of steam turbines, generators, boilers and other spare parts.
As Trader
YOYIK provides a large number of imported NUGENT diatomite filters and other products for many steam turbine generator main engine suppliers and power plants and other industrial users. The company has great advantages in the price and delivery time of many hydraulic products, including pumps, valves, sealing materials, etc. The brands cover EATON, VICKERS, MOOG, STAR, COPALTITE, TEMP-TITE, 707, etc.
As Service Provider
With more than 17 years of experience in supplying various area of industrial products, YOYIK provides reliable solutions for the multi-factory, multi-channel and multi-brand product needs of large-scale manufacturing, large-scale trading enterprises. We have a special information management system to achieve efficient cooperation with suppliers and logistics. With many years of experience, channels and resources in export business, aiming at improving efficiency and reducing costs, we provide customers with the best choice for purchasing and reduce your worries in the process.
Commercial & Industrial Status of Turbine Materials
The global market for steam turbine bearing materials is experiencing robust growth, driven by the aging infrastructure of thermal power plants in North America and Europe, combined with the rapid installation of high-capacity supercritical plants in Asia. In this landscape, the commercial value of specialized emergency repair materials has skyrocketed. When a utility faces an unscheduled outage, the cost of the raw Babbitt alloy or replacement bearing shell becomes secondary to the speed of delivery. This economic pressure has led to the establishment of dedicated global supply chains, where specialized manufacturers like Yoyik maintain ready-to-ship stocks of certified Babbitt ingots, pre-cast bearing pads, and high-performance sealing materials.
Traditionally, rebabbitting required shipping the entire bearing assembly back to a specialized workshop. Today, mobile laser cladding and High-Velocity Oxygen-Fuel (HVOF) thermal spray systems allow technicians to apply high-grade bearing alloys directly to the bearing shell on-site, cutting down repair times from weeks to mere days.
Optimizing the Complete Turbine System

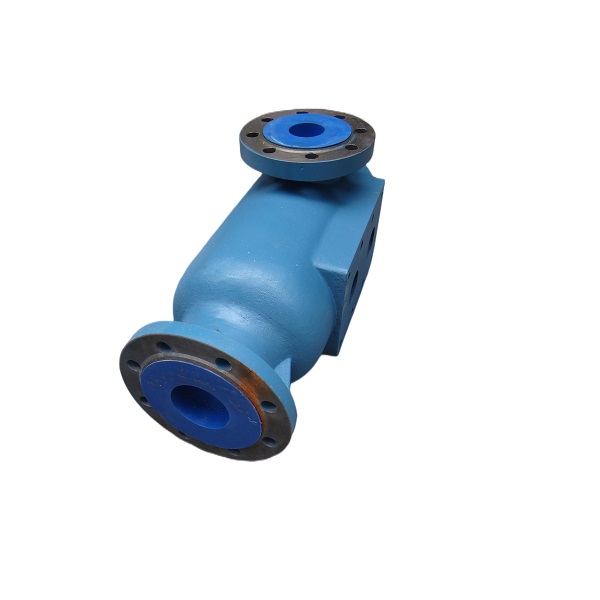

A steam turbine bearing does not operate in isolation. Its health is directly linked to the performance of auxiliary systems. For instance, the hydrogen sealing system prevents hydrogen coolant from escaping the generator casing, and it relies on precise seal rings which are often lined with bearing-grade alloys. Similarly, the main sealing oil pump must maintain constant hydraulic pressure to prevent oil starvation at the journals. During emergency overhauls, engineers must take a holistic approach, inspecting and replacing not only the bearing lining but also the associated filters, actuators, and speed sensors that protect the rotating assembly from future failures.
Our Milestones & History
Since our inception, YOYIK has been at the forefront of researching, developing, and supplying cutting-edge industrial components and bearing technologies.
Supply of steam turbine spare parts to Qianbei Power Plant of Guizhou Xidian Electric power Co. Ltd.
We signed a supply contract of steam turbine spare parts with Nine Dragon Paper Dongguan branch (Hong Kong-owned).
We reached a strategic partnership with 707 Institution.
We started the cooperation with ABB of bearings research and development.
We undertook China CNR Corporation's project of the generator retaining rings on CRH traction engines.
We cooperated with Beijing Institute of Technology and CSR Zhuzhou Electric Locomotive Co. on researching and testing insulation materials for wind power.
Together with Xi'an Jiaotong University, we completed the research and experiment of the 3rd generation nuclear pump water lubricated bearings, and of the new bearing metal material and technology.
We completed the localization experiment of bearings for high-speed grinder together with Chongqing Hengbo Machinery Manufacturing Co. Ltd.
We studied and developed new insulating materials with Tsinghua University Shenzhen Branch.
Siemens employees from the Germany headquarters visited our company for the cooperation of mill sliding bearings.
We cooperated with Siemens Control System Department on the project of large hydropower station transformers.
We started the cooperation with Fruider India on steam turbine spare parts.
We won the bid of the stator inspection project of 600MW generator units of Guizhou Faer power Plant.
We provided steam turbine spare parts for Vietnam Electricity IDICO power plant.
We became an authorized distributor of Shanghai Xinli Machinery Plant under the Ministry of Space Industry of PRC.
Mr. Ivan from ALSTOM Ltd. visited our company.
We won the bid of the generator collecting rings and manually wrapping insulation project of Guizhou Xishui power Plant.
Our Complete Emergency Spare Parts Portfolio
We supply a comprehensive range of components designed to support steam turbine bearing maintenance and emergency restoration projects.
