Featured Combined Cycle Plant Hydraulic Components
Explore our premium range of heavy-duty hydraulic parts designed to withstand the high-temperature and high-pressure demands of modern gas and steam turbine systems.
Commercial & Industrial Status of Combined Cycle Power Plants
Combined Cycle Power Plants (CCPP) represent the pinnacle of fossil-fuel thermal generation, merging gas and steam turbine technologies to achieve thermal efficiencies exceeding 60%. As global energy markets transition toward decarbonization and integrate variable renewable energy (VRE) sources like solar and wind, the commercial role of CCPPs has evolved dramatically. No longer operating solely as base-load plants, modern combined cycle facilities are increasingly utilized for load-following, peaking, and grid stabilization.
The Cycling Challenge & Hydraulic Reliability
Frequent startups, shutdowns, and rapid ramping subject plant machinery to severe thermal and mechanical fatigue. In this demanding operational landscape, the reliability of hydraulic control systems is paramount. Hydraulic components must execute precise, rapid movements under extreme conditions to regulate gas turbine fuel valves, position inlet guide vanes (IGVs), control steam bypass systems, and manage steam turbine governing valves. Any failure in these critical sub-systems can result in forced outages, incurring substantial financial penalties and grid instability.
Globally, the market for heavy-duty hydraulic components in power generation is experiencing robust growth. Operators are shifting away from traditional mineral oil-based systems toward fire-resistant fluids (FRFs), such as phosphate esters, to mitigate fire risks associated with high-temperature turbine environments. Consequently, seals, filters, and valves must be specially engineered to resist chemical degradation, fluid erosion, and high operating temperatures.
Deep Application Scenarios of Hydraulics in Combined Cycle Systems
To understand the rigorous demands placed on hydraulic hardware, it is essential to examine their specific application environments within a combined cycle block.
1. Gas Turbine Fuel & Air Control
In the gas turbine section, hydraulic actuators control the Inlet Guide Vanes (IGVs) to optimize airflow into the compressor, maximizing efficiency and controlling emissions across varying loads. High-pressure hydraulic control valves regulate fuel gas and liquid fuel flow. These actuators operate in close proximity to the turbine combustor shell, where ambient temperatures can exceed 150°C, necessitating the use of specialized sealing solutions like FFKM Rubber O-rings.
2. Steam Bypass & Pressure Control
During startup or trip conditions, steam from the Heat Recovery Steam Generator (HRSG) must bypass the steam turbine to protect the condenser. Rapid-acting hydraulic bypass valves modulate steam flow under extreme pressures and temperatures. Overpressure protection is managed by high-reliability safety devices, such as the Bellows relief valve BXF-40, which isolates the process fluid from the spring assembly, ensuring consistent setpoint operation.
3. Electro-Hydraulic Control (EHC)

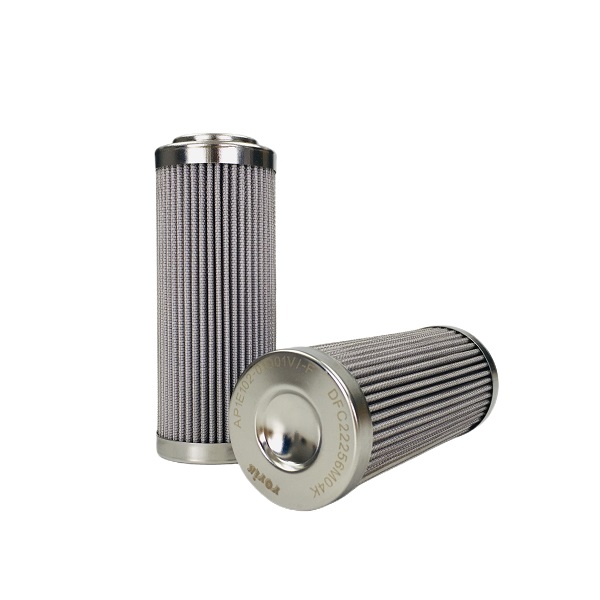

The EHC system utilizes high-pressure fluid (typically phosphate ester) to position the steam turbine governor and throttle valves. Because EHC systems operate with very tight tolerances, fluid cleanliness is critical. Contamination leads to servo valve stiction and erosion. High-precision filtration elements, such as the Actuator EH oil filter AP1E102-01D01V/-F and Circulating pump EH oil return filter DR1A401EA03V/-W, are deployed to capture micro-particles and prevent system failure.
Furthermore, monitoring systems are crucial in preventing catastrophic failures. Transient events, such as turbine overspeed, require sub-millisecond detection and intervention. Monitoring devices like the DF9011 Pro Precision Transient Rotational Speed Monitor provide real-time shaft speed data to the turbine protection system, triggering emergency hydraulic trip valves if safety thresholds are breached.
Future Trends in CCPP Hydraulic Technology
The future of hydraulic components in combined cycle plants is defined by digitalization, smart materials, and environmental sustainability. As plants adopt Industrial Internet of Things (IIoT) frameworks, hydraulic systems are transitioning from reactive maintenance schedules to predictive, condition-based maintenance models.
Smart Sensors & Real-time Diagnostics
Modern hydraulic actuators and filtration blocks are increasingly integrated with pressure, temperature, and particulate sensors. These sensors feed data into AI-driven analytics platforms that predict filter clogging, valve wear, and fluid degradation before they lead to operational failures. For example, monitoring the differential pressure across filters like the Hydraulic oil station precision fine filter UE310AP20Z allows operators to optimize maintenance intervals.
High-Performance Elastomers
As gas turbine firing temperatures increase to achieve higher thermal efficiencies, sealing technology must keep pace. Advanced perfluoroelastomers (FFKM) are continuously developed to withstand temperatures exceeding 300°C while maintaining chemical resistance to aggressive fire-resistant fluids. This prevents hydraulic fluid leaks, which are both a safety hazard and an environmental concern.
Key Technological Focus Areas:
- Varnish Mitigation: Development of advanced adsorption filters to remove soluble degradation products (varnish) from phosphate ester fluids.
- Electro-Hydrostatic Actuation (EHA): Self-contained localized hydraulic systems that eliminate the need for centralized hydraulic power units and extensive piping.
- Eco-Friendly Fluids: Research into biodegradable, non-toxic fire-resistant fluids that match the performance of synthetic esters.
- Additive Manufacturing: Using 3D printing to manufacture hydraulic manifolds with optimized flow paths, reducing pressure drops and weight.
The Company: Dongfang Yoyik
Dongfang Yoyik (Deyang) Engineering Co., Ltd. founded in 2004, is located in Deyang, Sichuan, the heavy industry base of China. YOYIK is a manufacturer and trader of industrial products, integrating design, R & D, production, sales and service. The team has more than 20 professional technicians and experienced sales to provide you with professional, reliable and considerate services.
Our major products and service: steam turbine spare parts, steam turbine generator spare parts, utility boiler spare parts, control system parts, hydraulic components, pneumatic components, filters, filter elements, EH system accessories, bolt heaters, insulating materials, sealant, Babbitt alloy bearing, DC motor / AC motor accessories, motor repair, etc. Our products cover different fields such as thermal power generation, hydropower generation, minerals, chemicals, paper mills, ships, etc., and are sold to more than 30 countries and regions in Europe, Southeast Asia, South America, and Africa.
The rapid development of YOYIK has received strong support from all walks of life. The needs of our users are our reasons for existence. Our philosophy is to always care about user needs and help users solving issues.
Why Choose Us
Rich Experience
Spare parts expert in the power industry since 2004, offering deep domain expertise.
Powerful Enterprise
One-step service for industrial traders and end-users, simplifying procurement.
Wide Range of Products
Over 3000 types of spare parts at your choice, covering mechanical, electrical, and hydraulic systems.
Professional Service
Experienced and skilled engineers, intellectual property patents, and customized engineering solutions.
Advanced Equipment
High-tech production equipment and professional testing devices ensuring strict quality control.
Our Services
As Manufacturer
YOYIK has strong strength in technical force and processing capabilities, fully equipped with CNC lathes, machining centers, vertical lathes, CNC boring machines, gantry planers, gantry milling machines, 80mm plate rolling machines, etc. We have provided high-quality equipment selection, construction design, installation and commissioning, after-sales service for the overhaul and technical transformation of hundreds of thermal power plants, hydropower stations, and metallurgical enterprises, and quickly and accurately provided a large number of steam turbines, generators, boilers and other spare parts.
As Trader
YOYIK provides a large number of imported NUGENT diatomite filters and other products for many steam turbine generator main engine suppliers and power plants and other industrial users. The company has great advantages in the price and delivery time of many hydraulic products, including pumps, valves, sealing materials, etc. The brands cover EATON, VICKERS, MOOG, STAR, COPALTITE, TEMP-TITE, 707, etc.
As Service Provider
With more than 17 years of experience in supplying various area of industrial products, YOYIK provides reliable solutions for the multi-factory, multi-channel and multi-brand product needs of large-scale manufacturing, large-scale trading enterprises. We have a special information management system to achieve efficient cooperation with suppliers and logistics. With many years of experience, channels and resources in export business, aiming at improving efficiency and reducing costs, we provide customers with the best choice for purchasing and reduce your worries in the process.
Our History & Milestones
Complete Hydraulic & Power Plant Component Catalog

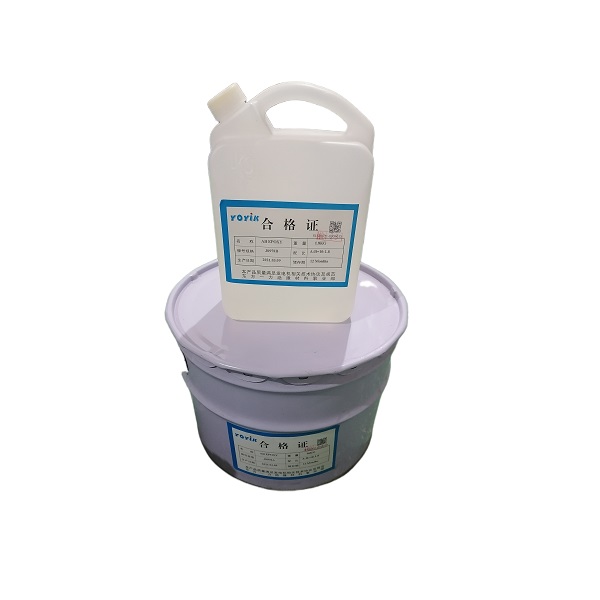

Browse our comprehensive selection of industrial components optimized for combined cycle power plants, including filters, monitors, seals, and adhesives.
