The generator stator cooling water filter SGLQB-1000 is made by folding ultra-fine polypropylene fiber membrane and non-woven fabric or (wire mesh) inner and outer support layers. Polypropylene is a synthetic material with low density, high strength, low water absorption, and good chemical stability. The center rod and end cap of the filter element shell are processed and formed using hot melt welding technology, without any adhesive, leakage, and secondary pollution.
The generator stator cooling water filter SGLQB-1000 is suitable for water filtration of various generator unit capacities such as 300MW units, 600MW units, and 1000MW units. The filter element mainly uses ABS framework, which efficiently filters PP cotton. The filter element is installed in the makeup water filter to remove impurities from the water.
Technical Parameter
| Material | Polypropylene |
| Rated flow rate | 1.5m3/h |
| Pressure | 1.6MPA |
| Filtering accuracy | 5 microns |
| Applicable medium | cooling water |
Note: If you would like to learn more product information, please do not hesitate to contact us, and we will patiently provide you with a solution.
Characteristic
1. The filter material of the generator stator cooling water filter SGLQB-1000 for the generator is designed with a scientific structure, resulting in good overall performance of the product.
2. The filter element has a large filtration area, high flow rate, and low pressure difference;
3. The folded microporous filter membrane structure allows the filter element to have a larger effective filtration area under the same size, thereby increasing flow rate and reducing pressure difference;
4. The full polypropylene material makes the generator stator cooling water filter SGLQB-1000 of the generator have good chemical compatibility and is suitable for filtering various liquids.

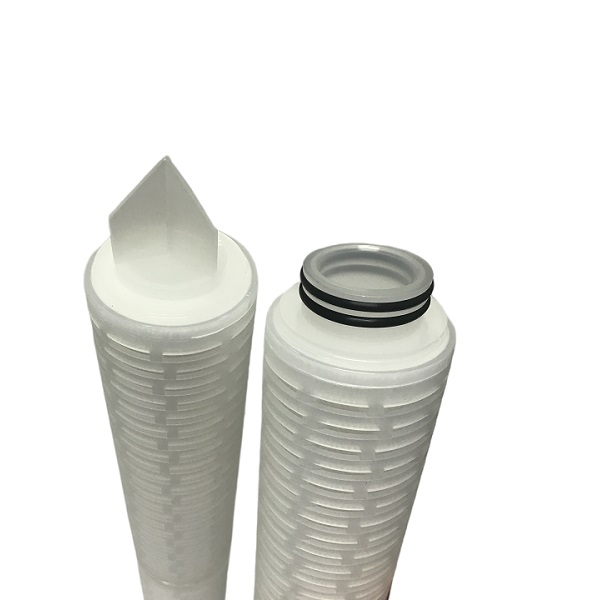

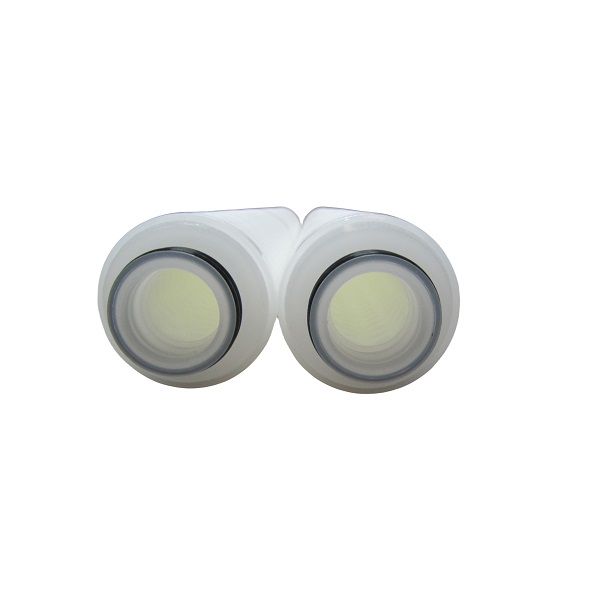

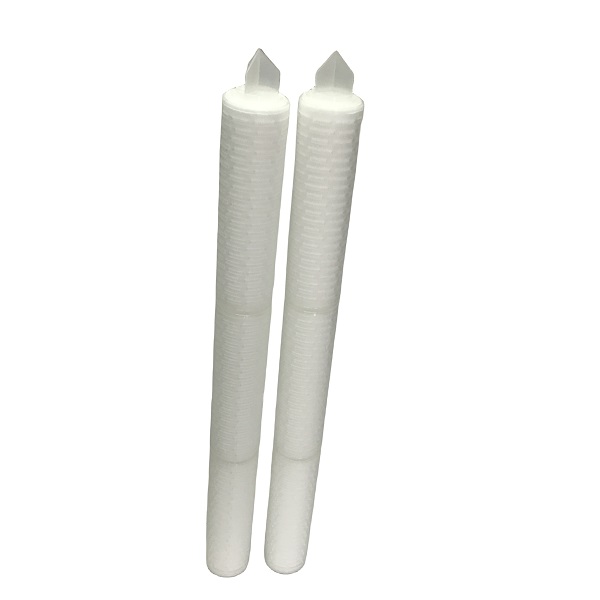

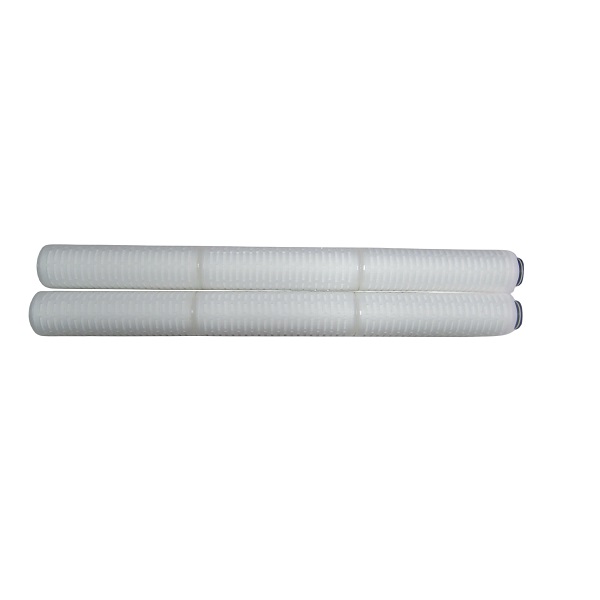

Generator stator cooling water filter SGLQB-1000 Show
