Circulating oil pump oil-suction filter WU-100X180J

Short Description:

The Circulating oil pump oil-suction filter WU-100X180J is used in the hydraulic system to filter out solid particles and colloidal substances in the working medium. It can effectively control the pollution degree of the working medium and protect the normal operation of the mechanical equipment by filtering the solid impurities generated in the external mixing of various oil systems or in the process of system operation. It is an indispensable part of the transmission medium pipeline series.


Product Detail

application

WU-100X180J Circulating oil pump oil-suction filter is used for coarse filter, which is generally installed at the oil suction port of the oil pump to prevent the oil pump from absorbing large mechanical impurities. It can also be installed on the oil suction circuit, pressure oil circuit, oil return pipeline, and bypass in the hydraulic system, or on the separate filtration system.

WU-100X180J Circulating oil pump oil-suction filter has simple structure, large oil passing capacity and small resistance, and is equipped with pipe type and flange type connection, divided screen type and line gap type.

Parameters

Detailed parameters of WU-100X180J oil-suction filter:

Medium: hydraulic oil

Filtering precision: 180 μ m

Nominal flow: 16 L/min

Connection mode: tubular

Working pressure: 0.6Mpa

Working temperature: - 10 ℃~100 ℃

Functions

Functions of WU-100 * 180J oil-suction filter:

1. High strength and aging resistance

2. Low and high temperature resistance

3. Multiple application scenarios

4. Quickly and effectively remove mechanical impurities and protect the oil pump

5. The oil-suction filter can withstand large range of deformation

6. The oil-suction filter has good permeability and can prevent damage caused by hydrostatic pressure.

WU-100X180J oil-suction filter Show

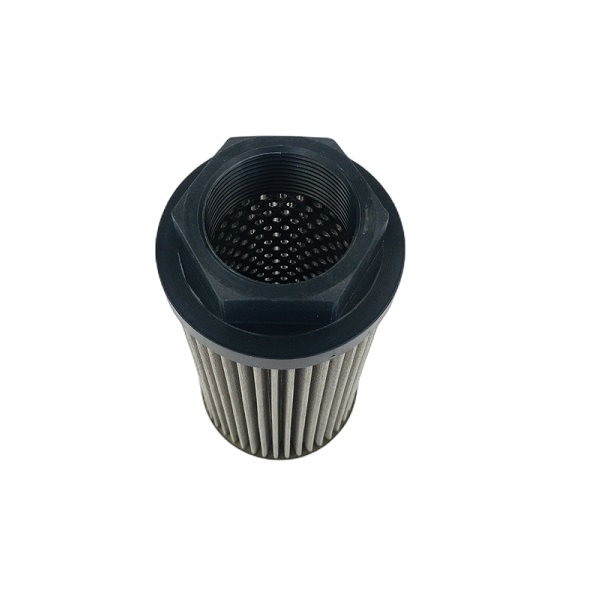

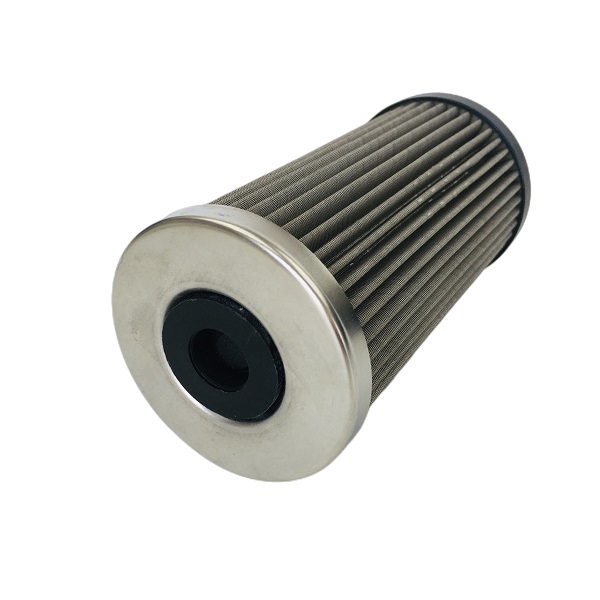

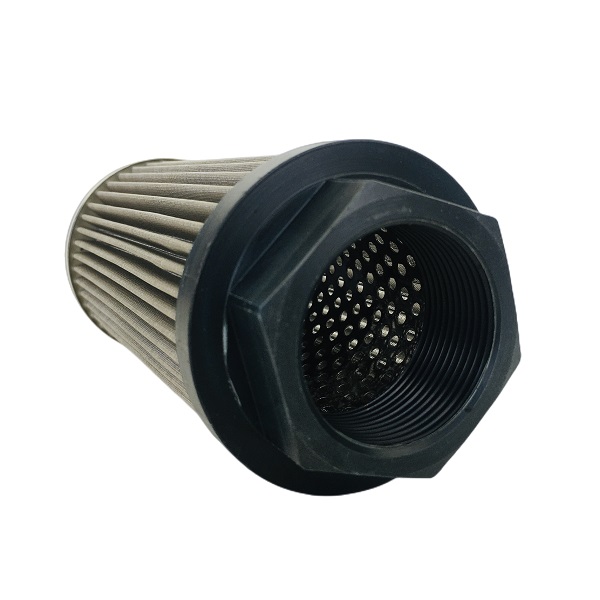

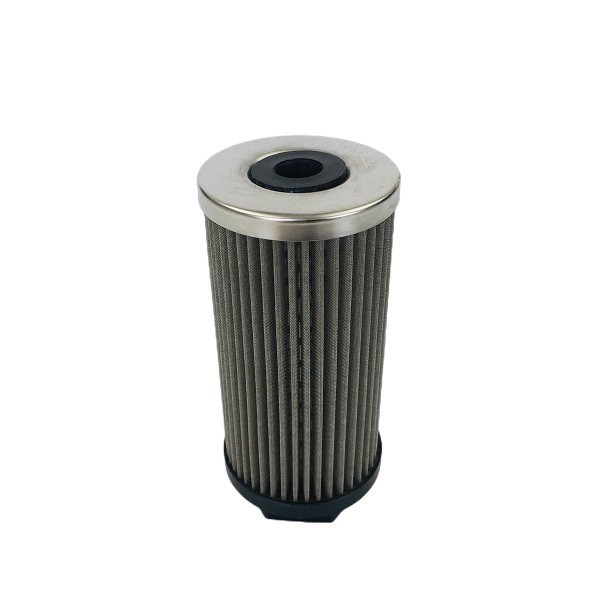

WUI-100x180J Circulating oil pump oil-suction filter  (2) WUI-100x180J Circulating oil pump oil-suction filter  (3) WUI-100x180J Circulating oil pump oil-suction filter  (6) WUI-100x180J Circulating oil pump oil-suction filter  (4)
