Thrust Plate Bearings in Modern Power Generation: Industry Dynamics & Technical Depth
In the global power generation sector, the reliability and efficiency of rotating machinery are critical to ensuring continuous electricity supply. At the core of these massive systems—ranging from thermal steam turbines and vertical hydroelectric units to high-speed gas turbines and nuclear generators—lies the thrust plate bearing. This mechanical marvel is designed to handle enormous axial loads, maintaining shaft stability under high rotational speeds, extreme temperatures, and intense pressure gradients.
Extreme Axial Load Capacity
Engineered to absorb and neutralize heavy axial forces generated by fluid dynamics and rotor weight, ensuring stable operation under variable load demands.
Hydrodynamic Efficiency
Utilizes advanced fluid film lubrication technology to minimize friction losses, directly boosting the overall thermodynamic efficiency of power plants.
Long-Term Wear Resistance
Constructed with premium Babbitt alloys and advanced composite materials to withstand harsh start-stop cycles and prevent catastrophic wear.
Industrial Status & Market Evolution
The transition toward high-efficiency, low-emission power systems has placed unprecedented demands on bearing technologies. Ultra-supercritical thermal power plants run at higher temperatures and pressures, requiring thrust plate bearings to exhibit exceptional thermal stability. Similarly, the rapid ramp-up cycles of combined-cycle gas turbine (CCGT) plants demand bearings that can handle rapid thermal expansion and transient load shifts without oil film breakdown.
In the hydroelectric sector, vertical Francis and Kaplan turbines rely on massive thrust bearings to support the weight of the entire generator rotor plus the dynamic hydraulic thrust of the water column—often totaling thousands of tons. The market is shifting from traditional fixed-pad designs to self-aligning, tilting-pad thrust plate bearings, which adapt dynamically to shaft misalignment and thermal deflection, preventing localized hot spots and premature failure.
Deep Application Scenarios in Power Generation
1. Steam Turbines (Thermal & Nuclear Plants)
In steam turbines, high-pressure steam expands rapidly across multiple stages of blades, generating a massive axial force acting on the rotor. The thrust plate bearing acts as the primary constraint, locking the axial position of the rotor to prevent blade-to-casing contact. In nuclear steam turbines, where reliability is paramount, these bearings are paired with high-performance jacking oil systems (hydrostatic lift) to create an artificial oil film during slow-speed turning gear operation, eliminating metal-on-metal friction during startup and shutdown.
2. Large Vertical Hydroelectric Generators
Vertical hydro generators feature some of the largest thrust bearings in the world. They must support massive static loads and withstand sudden dynamic surges caused by grid frequency adjustments or load rejection. These bearings are typically submerged in large oil baths equipped with water cooling coils and high-pressure oil injection systems. The integrity of the oil film is continuously monitored using embedded temperature sensors (RTDs) and proximity probes.
3. Gas Turbines & Combined-Cycle Units
Modern gas turbines operate at speeds exceeding 3,000 RPM under extreme thermal gradients. The thrust bearing must adapt to rapid thermal growth of the turbine rotor. Advanced tilting-pad thrust bearings with copper-backed pads are frequently used to maximize heat dissipation, keeping the bearing surface temperature well below the degradation point of the Babbitt alloy.
Key Engineering Challenges & Solutions

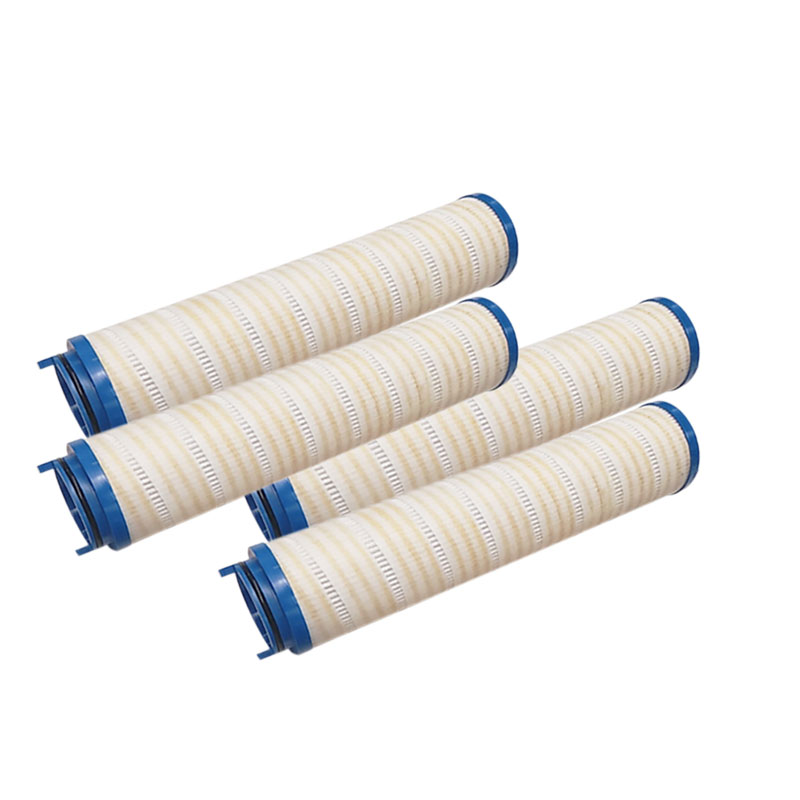

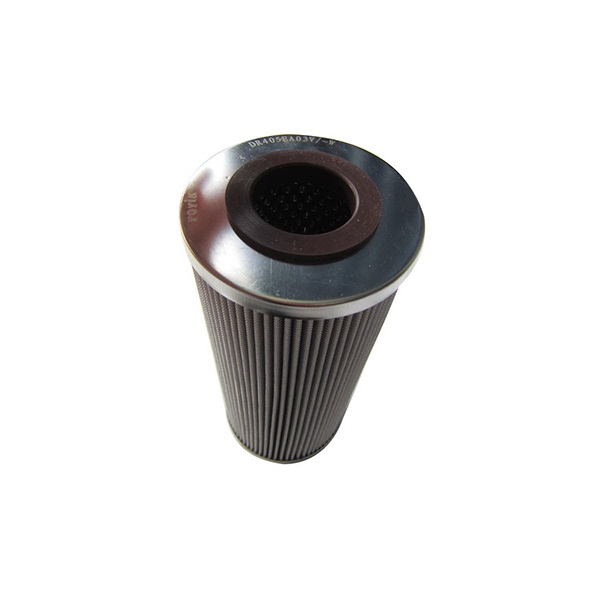

Oil Film Thickness Maintenance: The primary failure mode of thrust plate bearings is the collapse of the hydrodynamic oil film, leading to boundary lubrication and thermal wiping of the Babbitt alloy. To prevent this, power plants must implement high-precision oil filtration systems. Contaminants in the lubricating oil can score the thrust plates and disrupt the micro-thin oil film. Using specialized products like the EH Oil Circulating Pump Oil Filter Element and high-precision fine filters ensures that the oil running through the bearing remains free of sub-micron particles.
Thermal Management: As shear forces in the oil film generate heat, the temperature of the thrust pads rises. If the temperature exceeds the limits of the Babbitt metal (typically 110°C to 120°C for continuous operation), the material softens and fails. Modern solutions include direct lubrication (directed oil flow), which bypasses the hot oil carryover from preceding pads, feeding fresh, cool oil directly to the leading edge of each pad. This reduces pad temperatures by up to 10°C to 15°C, increasing the safety margin of the power unit.
