Steam turbine precision filter MSF-04S-03

Short Description:

The precision filter MSF-04S-03 is specially developed for the turbine EH oil system, which can effectively filter out particulate impurities and colloidal substances in the fire resistant oil, maintain the cleanliness level of EH fire resistant oil, and extend the service life of EH oil.
Brand: YOYIK

Product Detail

Main features

1. The precision filter MSF-04S-03 has good filtration performance and can achieve uniform surface filtration performance for a filtration particle size of 2-200um;

2. The filter element has good corrosion resistance, heat resistance, pressure resistance, and wear resistance; and it can be repeatedly rinsed and has a long service life.

3. Uniform and precise filtration accuracy of stainless steel filter pores;

4. The stainless steel filter element has a large flow rate per unit area;

5. Stainless steel filter materials can be used in low and high temperature environments;

6. Under the condition that the precision filter MSF-04S-03 is not deformed, it can be reused after cleaning without replacement.

Technical parameter

Filter element pressure difference 21MPa
Operating temperature -10~+100 ℃
End cover material 304 stainless steel
Framework material 304 stainless steel
Sealing material NBR rubber/fluororubber
Filter material glass fiber/stainless steel woven mesh
Liquid flow direction from outside to inside


The precision filter MSF-04S-03 can effectively filter out particles, impurities, and colloids in the EH oil system, protecting important valves and components in the turbine EH oil system.

Preventive measures for faults in the EH oil system of steam turbines:

1. When the oil pressure drops to 12MPa, check if the backup pump is turned on and manually start it.

2. During high-temperature operation, pay attention to the changes in oil temperature and prepare for cooling to prevent oil deterioration and sealing ring aging caused by excessive oil temperature.

3. If EH oil leakage is found, isolate the oil leakage point while maintaining the oil pressure as much as possible, and promptly contact maintenance personnel to replenish the oil. If isolation is not possible, apply for closure.

4. If the pressure difference at the pump outlet is high, the backup pump should be started and the precision filter MSF-04S-03 should be maintained and replaced.

5. If there is an abnormality in the running pump, it should be switched to standby.

6. Regularly conduct pressure measurement and leak detection to prevent potential risks.

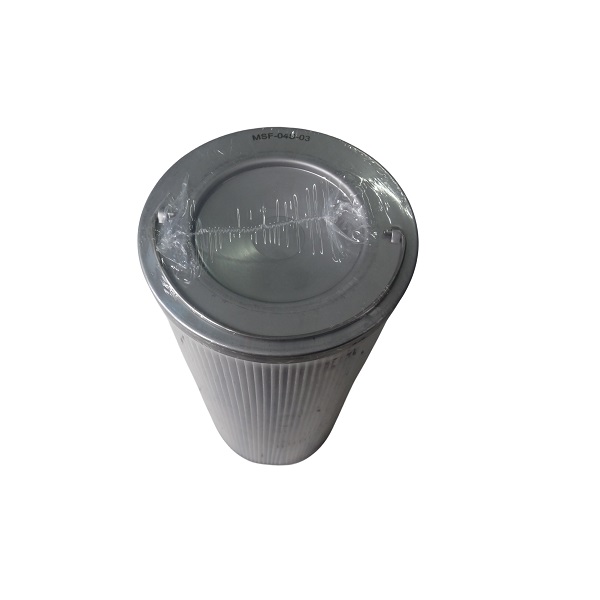

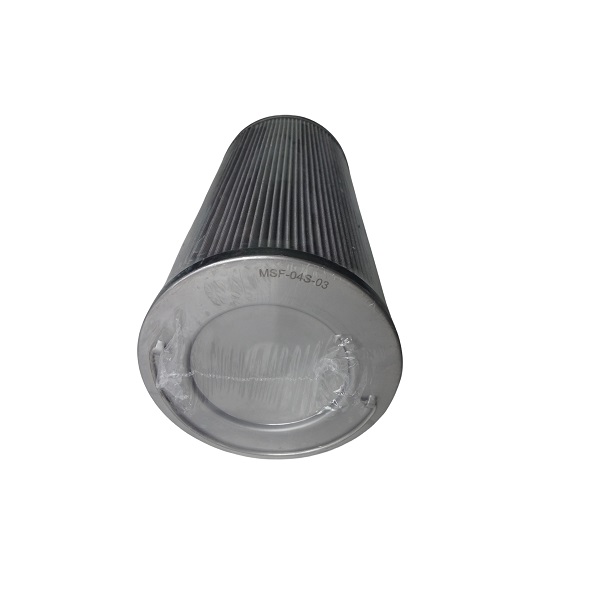

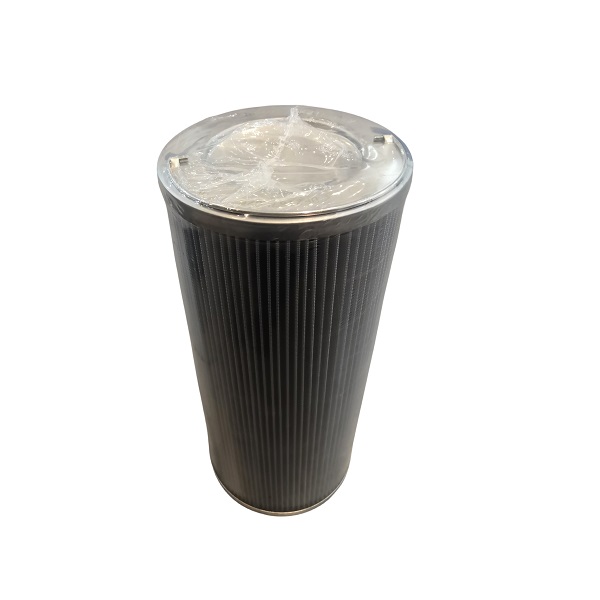

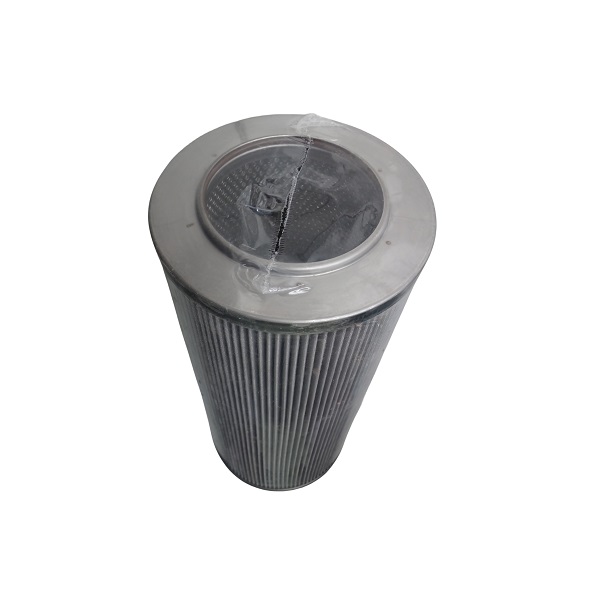

precision filter MSF-04S-03 Show

precision filter MSF-04S-03 (4) precision filter MSF-04S-03 (3) precision filter MSF-04S-03 (2) precision filter MSF-04S-03 (1)
