Babbitt Bearing Replacement For Industrial Plants

In heavy industrial plants, rotating machinery such as steam turbines, turbo-generators, ball mills, and large centrifugal compressors form the backbone of production. At the heart of these massive machines are Babbitt bearings (also known as journal bearings or sleeve bearings). Composed of specialized tin-based or lead-based alloys, Babbitt bearings provide a low-friction surface that accommodates shaft misalignment, embeds foreign particles to prevent shaft scoring, and supports high-speed hydrodynamic lubrication. However, under extreme operating conditions—characterized by high temperatures, cyclic loading, and chemical contamination—these bearings inevitably suffer from wear, fatigue, and wiping.

Babbitt bearing replacement is not merely a routine maintenance task; it is a critical engineering intervention that directly impacts plant availability and operational safety. As industrial plants globally push for higher efficiency and longer runtime cycles, the demand for high-reliability Babbitt bearing restoration and replacement services has reached unprecedented levels. Modern plants cannot afford unplanned shutdowns, where a single day of steam turbine downtime can translate into hundreds of thousands of dollars in lost revenue.

Replacing a Babbitt bearing involves highly specialized metallurgical and machining processes. The procedure begins with the removal of the worn alloy from the backing shell, usually made of cast iron, steel, or bronze. The shell is then meticulously cleaned and prepared through chemical degreasing and abrasive blasting. To ensure a flawless bond, the shell undergoes a "tinning" process, where a thin layer of pure tin is applied to the hot backing shell. The replacement Babbitt alloy is then cast using either static pouring or centrifugal casting methods. Centrifugal casting is highly preferred for cylindrical bearings as it uses centrifugal force to eliminate air pockets, impurities, and voids, resulting in a denser, highly uniform grain structure.

Once cast, the bearing is machined to exact tolerances using high-precision CNC equipment. In heavy industrial plants, clearances are measured in micrometers. A clearance that is too tight can cause thermal runaway, while a clearance that is too loose can induce oil whip or whirl, leading to severe vibration. Non-destructive testing (NDT), such as ultrasonic testing (UT) and dye penetrant inspection, is carried out to ensure 100% bonding integrity between the Babbitt and the backing shell.

Integrating Auxiliary Systems for Maximum Bearing Longevity

A successful Babbitt bearing replacement project must consider the entire machinery ecosystem. The lifespan of a newly replaced Babbitt bearing depends directly on the quality of the lubrication system and monitoring equipment. For instance:

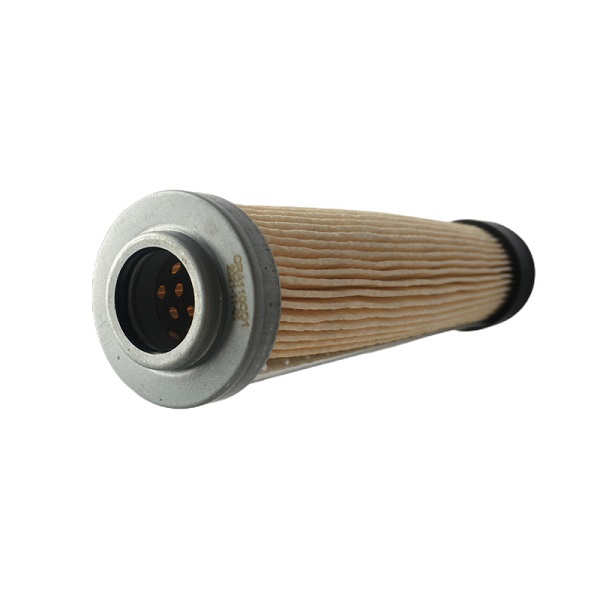

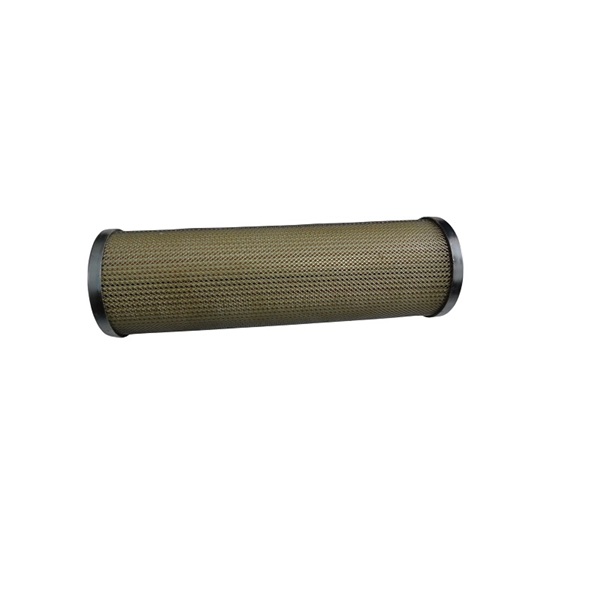

• High-Efficiency Filtration: Contaminants in the lubricating oil act as abrasives, scratching the soft Babbitt surface. Utilizing high-grade filters such as the Filter element HDX-160×20Q2 and the Hydraulic oil return filter element CRA110CD1 ensures that sub-micron particles are trapped before they can enter the hydrodynamic oil wedge.
• Speed & Rotation Monitoring: During startup and shutdown phases, hydrodynamic lift is not fully established, leading to boundary lubrication where wear is highest. Sensors like the Reverse Rotation Speed Sensor CS-3F provide precise rotational data to control systems, preventing damages associated with reverse rotation or inadequate startup speeds.
• Thermal Protection: Overheating is the primary cause of Babbitt wiping. Integrating advanced thermal array probes and control systems allows operators to shut down systems safely before the Babbitt metal reaches its softening point (typically around 130°C to 150°C depending on the alloy composition).
