Essential Steam Turbine Bearing System Components
Ensuring oil cleanliness, accurate speed telemetry, and pressure control within the bearing lubrication loops.
The Crucial Role of Bearings in Steam Turbine Power Generation
In thermal and nuclear power plants, the steam turbine is the heart of the electricity generation process. Operating at extreme rotational speeds—often up to 3,000 or 3,600 RPM—while supporting rotors weighing dozens of tons, requires an exceptionally robust support system. The steam turbine bearing serves as this critical mechanical interface. It is designed to handle immense radial and axial loads while minimizing friction, preventing rotor dynamic instability, and ensuring continuous power generation output.
Without high-performance bearing systems, the dynamic forces generated by high-pressure steam expanding through the turbine blades would lead to catastrophic structural failure. Modern power utilities demand bearing designs that not only withstand these extreme operational parameters but also offer predictability, long service lifespans, and minimal maintenance overhead. Babbitt alloy (or white metal) bearings remain the industry standard, providing the perfect balance of load capacity, conformability, and embeddability to protect the turbine shaft from wear.
Technical Typology: Journal vs. Thrust Bearing Assemblies
Steam turbine bearing arrangements typically consist of two primary types of hydrodynamic bearings, each serving a distinct mechanical function within the rotor train:
1. Hydrodynamic Journal Bearings (Radial Support)
Radial journal bearings support the weight of the turbine rotor and control its lateral positioning. In utility-scale power generation, tilting pad journal bearings (TPJBs) are widely preferred over fixed-profile sleeve bearings. TPJBs feature individual pads that pivot independently to accommodate shaft misalignment and eliminate oil whip and whirl—vibrational phenomena that can destroy a turbine at high speeds. These bearings rely on the hydrodynamic generation of a thin oil film, typically between 20 to 50 microns thick, which separates the rotating shaft journal from the stationary bearing pads.
2. Tilting Pad Thrust Bearings (Axial Positioning)
As high-pressure steam flows through the turbine blades, it exerts a massive axial force along the shaft. Tilting pad thrust bearings (often utilizing Kingsbury or Mitchell self-equalizing designs) are engineered to absorb this thrust. The self-equalizing linkages distribute the axial load evenly across all thrust pads, preventing localized overheating and film breakdown. The reliability of these bearings dictates the safety margin of the entire generator set, making real-time monitoring of thrust pad temperatures a critical operational metric.
Industrial Application Scenario: The Jacking Oil System Interface
During the startup (turning gear operation) and shutdown phases of a steam turbine, the shaft rotates too slowly to generate a hydrodynamic oil film. To prevent metal-to-metal contact and preserve the Babbitt alloy lining, a hydrostatic jacking oil system (or lift oil system) is activated. High-pressure oil is pumped directly beneath the shaft journal to lift the rotor. This process requires absolute oil cleanliness, where specialized filtration units such as the Jacking oil pump filter element HBX-250x10 play a vital role in preventing particulate contamination from entering the bearing clearance zone.
The Company: Dongfang Yoyik (Deyang) Engineering Co., Ltd.
Dongfang Yoyik (Deyang) Engineering Co., Ltd. founded in 2004, is located in Deyang, Sichuan, heavy industry base of China. YOYIK is manufacturer and trader of industrial products, integrating design, R & D, production, sales and service. The team has more than 20 professional technicians and experienced sales to provide you with professional, reliable and considerate services.
Our major products and service: steam turbine spare parts, steam turbine generator spare parts, utility boiler spare parts, control system parts, hydraulic components, pneumatic components, filters, filter elements, EH system accessories, bolt heaters, insulating materials, sealant, Babbitt alloy bearing, DC motor / AC motor accessories, motor repair, etc. Our products cover different fields such as thermal power generation, hydropower generation, minerals, chemicals, paper mills, ships, etc., and are sold to more than 30 countries and regions in Europe, Southeast Asia, South America, and Africa.
The rapid development of YOYIK has received strong support from all walks of life. The needs of our users are our reasons for existence. Our philosophy is to always care about user needs and help users solving issues.
Why Choose Us
-
1Rich experience: spare parts expert in power industry since 2004.
-
2Powerful enterprise: one-step service for industrial traders and users.
-
3Wide range of products: over 3000 types of spare parts at your choice.
-
4Professional service: experienced and skilled engineers, intellectual property patents.
-
5Advanced equipment: high-tech production equipment and professional testing devices.
Commercial & Industrial Trends in Turbine Bearing Technology
The global power generation landscape is undergoing a massive shift towards higher efficiency and reduced carbon emissions. This transition directly impacts the design and material specifications of steam turbine bearings. Supercritical (SC) and Ultra-Supercritical (USC) coal-fired power plants, along with large-scale Gas Turbine Combined Cycle (GTCC) plants, require turbines to operate at higher steam pressures and temperatures. Consequently, bearings must support higher loads and thermal inputs than ever before.
Smart Bearing Condition Monitoring
The integration of Industrial Internet of Things (IIoT) sensors directly into bearing housings is a major trend. Thermocouples, RTDs, and eddy-current proximity probes monitor oil film temperature, radial displacement, and vibration in real time. Dynamic diagnostic systems use this data to predict oil film instability, rotor imbalance, or alignment issues before they trigger a turbine trip. High-accuracy speed sensors, such as the DF6101 Steam turbine magnetic rotation speed sensor, provide precise RPM data necessary to correlate vibration frequency with rotational harmonics.
Advanced Babbitt Alloys & Alternative Materials
Traditional tin-based Babbitt (ASTM B23 Grade 2) remains popular due to its excellent conformability and surface-damage tolerance. However, for high-load applications, engineers are turning to advanced copper-backed Babbitt structures or polymer-lined tilting pads (PEEK/PTFE). Polymer bearings offer higher thermal thresholds and can operate with thinner lubrication films, reducing frictional losses by up to 30% and significantly enhancing overall turbine efficiency.
Our Services
As Manufacturer
YOYIK has strong strength in technical force and processing capabilities, fully equipped with CNC lathes, machining centers, vertical lathes, CNC boring machines, gantry planers, gantry milling machines, 80mm plate rolling machines, etc. We have provided high-quality equipment selection, construction design, installation and commissioning, after-sales service for the overhaul and technical transformation of hundreds of thermal power plants, hydropower stations, and metallurgical enterprises, and quickly and accurately provided a large number of steam turbines, generators, boilers and other spare parts.
As Trader
YOYIK provides a large number of imported NUGENT diatomite filters and other products for many steam turbine generator main engine suppliers and power plants and other industrial users. The company has great advantages in the price and delivery time of many hydraulic products, including pumps, valves, sealing materials, etc. The brands cover EATON, VICKERS, MOOG, STAR, COPALTITE, TEMP-TITE, 707, etc.
As Service Provider
With more than 17 years of experience in supplying various area of industrial products, YOYIK provides reliable solutions for the multi-factory, multi-channel and multi-brand product needs of large-scale manufacturing, large-scale trading enterprises. We have a special information management system to achieve efficient cooperation with suppliers and logistics. With many years of experience, channels and resources in export business, aiming at improving efficiency and reducing costs, we provide customers with the best choice for purchasing and reduce your worries in the process.
The History of Yoyik
Supply of steam turbine spare parts to Qianbei Power Plant of Guizhou Xidian Electric power Co. Ltd.
Signed a supply contract of steam turbine spare parts with Nine Dragon Paper Dongguan branch (Hong Kong-owned).
We reached a strategic partnership with 707 Institution.
Started the cooperation with ABB of bearings research and development.
Undertook China CNR Corporation’s project of the generator retaining rings on CRH traction engines.
Cooperated with Beijing Institute of Technology and CSR Zhuzhou Electric Locomotive Co. on researching and testing insulation materials for wind power.
Together with Xi'an Jiaotong University, we completed the research and experiment of the 3rd generation nuclear pump water lubricated bearings, and of the new bearing metal material and technology.
Completed the localization experiment of bearings for high-speed grinder together with Chongqing Hengbo Machinery Manufacturing Co. Ltd.
Studied and developed new insulating materials with Tsinghua University Shenzhen Branch.
Siemens employees from the Germany headquarters visited our company for the cooperation of mill sliding bearings.
Cooperated with Siemens Control System Department on the project of large hydropower station transformers.
Started the cooperation with Fruider India on steam turbine spare parts.
Won the bid of the stator inspection project of 600MW generator units of Guizhou Faer power Plant.
Provided steam turbine spare parts for Vietnam Electricity IDICO power plant.
Became an authorized distributor of Shanghai Xinli Machinery Plant under the Ministry of Space Industry of PRC.
Mr. Ivan from ALSTOM Ltd. visited our company.
Won the bid of the generator collecting rings and manually wrapping insulation project of Guizhou Xishui power Plant.
Our Complete Power Generation Product Line

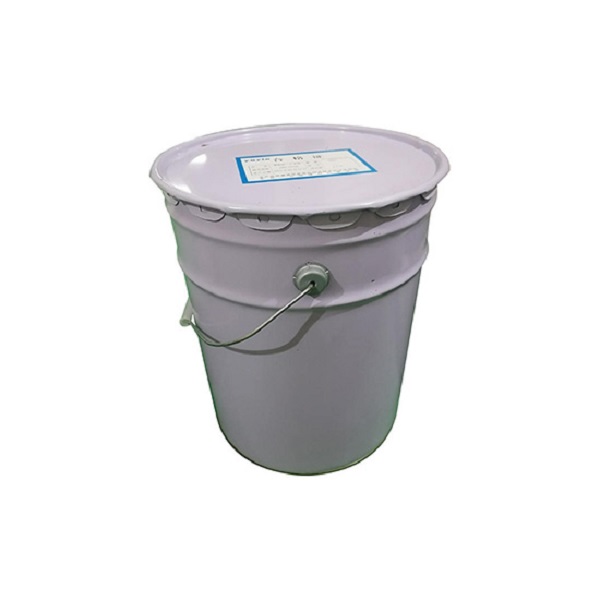

High-quality sensors, filters, varnishes, and mechanical components supporting steam turbine operations.
