Optimizing Governor Systems for Combined Cycle Power Plants

In modern power generation, Combined Cycle Power Plants (CCPP) represent the pinnacle of thermal efficiency. By pairing gas turbines with steam turbines, these plants capture waste heat to produce additional electricity, achieving efficiency levels exceeding 60%. However, managing the complex dynamics of both gas and steam cycles requires an exceptionally sophisticated control mechanism: the Governor System.

The governor system acts as the brain of the turbine, regulating speed, load, and pressure by adjusting fuel and steam control valves. In a combined cycle configuration, the governor must not only manage individual turbines but also coordinate their interactive dynamics in real time to ensure grid stability, prevent equipment thermal stress, and maximize energy output.

Unlike simple open-cycle setups, a CCPP governor system utilizes integrated multi-loop controllers. The gas turbine governor controls fuel flow and Inlet Guide Vane (IGV) positions based on grid frequency and temperature limitations. Simultaneously, the steam turbine governor manages steam admission from the Heat Recovery Steam Generator (HRSG).

Because the steam production is directly dependent on the gas turbine's exhaust heat, the steam turbine governor must operate in close coordination with the gas turbine's load changes. This requires advanced predictive algorithms and feedforward control loops to handle transient states, such as rapid load rejection or startup sequences, without causing overpressure in the HRSG or steam turbine water induction.

To achieve high-fidelity control, the governor system incorporates specialized hardware components:

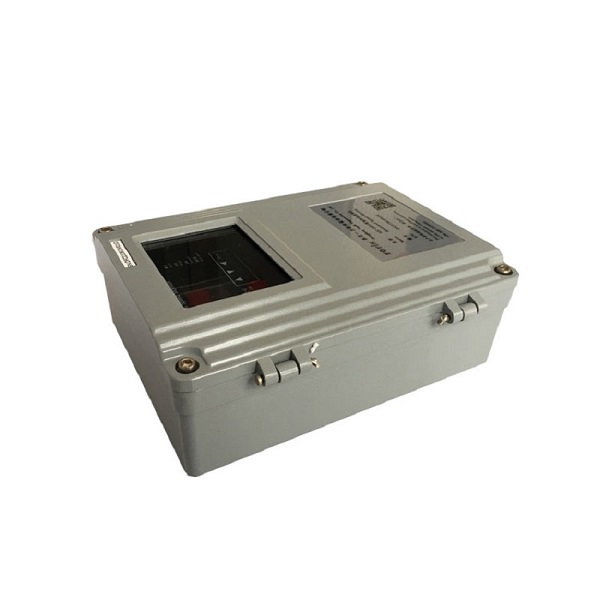

• Rotational Speed Monitors: Devices like the SZC-04FG Wall Mounted Rotational Speed Monitor track shaft speed with high resolution, providing the primary feedback variable for speed control and overspeed protection.
• LVDT Position Sensors: Linear Variable Differential Transformers (such as the HL-6-150-15 and TD-1 0-100) monitor the exact stroke of fuel and steam control valves. This ensures that the governor's command matches the physical valve opening.
• Electro-Hydraulic Actuation (EHC): High-pressure hydraulic oil systems translate electronic governor commands into mechanical force to move heavy steam valves. Cleanliness in these systems is paramount, demanding high-efficiency filtration like the Duplex Oil Filter Element LX-FM1623H3XR and the Jacking Oil System Backwash Filter ZCL-I-450.

As renewable energy sources (solar and wind) penetrate the electrical grid, combined cycle plants are transitioning from base-load providers to peaking and load-following assets. This shift requires governor systems to support rapid cycling, fast start-ups, and frequency response modulation.

Modern governor systems are integrated with Digital Twin technology, allowing operators to simulate thermal stress on turbine rotors during rapid startups. By calculating real-time stress limits, the governor can aggressively ramp up the turbine without compromising structural integrity. Furthermore, governor systems are adapting to fuel-flexibility requirements, including gas turbines running on hydrogen-natural gas blends, which exhibit significantly different combustion dynamics and fuel-valve control curves.
