Critical Components for Babbitt Bearing Maintenance
Ensure precise installation, clean lubrication, and robust control during planned overhauls
The Strategic Role of Babbitt Bearing Replacement in Planned Maintenance
In heavy industrial operations—ranging from massive thermal power plants and hydroelectric stations to chemical processing units, pulp mills, and marine propulsion—large rotating machinery forms the operational backbone. Steam turbines, turbo-generators, large industrial motors, compressors, and pumps operate under extreme physical stresses, high rotational velocities, and elevated temperatures. At the center of these critical systems are Babbitt bearings (also known as white metal or journal bearings).
Planned Maintenance (PM) is a systematic approach designed to mitigate risks of catastrophic equipment failure, optimize machine efficiency, and extend the overall lifespan of industrial assets. Within the scope of a PM cycle, Babbitt bearing replacement and refurbishment stand out as high-precision, non-negotiable tasks. Failing to address bearing wear proactively can lead to catastrophic rotor instability, severe shaft damage, and millions of dollars in unscheduled downtime.
"Babbitt bearings are designed as the sacrificial element within critical rotating machinery. By utilizing a softer alloy, they protect the expensive rotor shaft from wear, absorbing contaminants and adapting to misalignments. However, this means they must be inspected, re-babbitted, or replaced during scheduled maintenance windows."
Commercial and Industrial Landscape of Babbitt Bearings
The global industrial landscape is experiencing a significant transition. As power grids integrate more renewable energy sources, traditional thermal plants are shifted from continuous base-load operations to cyclic, peaking operations. This frequent cycling (start-stop routines) subjects steam turbines and their Babbitt bearings to transient thermal stresses, boundary lubrication conditions, and dynamic load variations. Consequently, the rate of bearing fatigue and wear has accelerated, making structured planned maintenance intervals more critical than ever.
From a commercial perspective, the cost of a planned Babbitt bearing replacement is a fraction of the cost associated with an emergency outage. According to industry statistics, an unplanned shutdown of a 600MW steam turbine can incur losses exceeding $100,000 per day in lost power generation alone, excluding the multi-million dollar repair costs of damaged rotors. Consequently, asset managers are shifting from reactive "run-to-failure" models to predictive and planned maintenance strategies, driving steady demand for high-quality Babbitt alloys, specialized machining services, and supporting filtration and heating systems.
Material Science: Tin-Based vs. Lead-Based Alloys
Modern Babbitt bearings are composed of specialized alloys categorized into two primary families:
- Tin-Based Alloys (ASTM B23 Grade 2, etc.): Typically containing 89% tin, 7.5% antimony, and 3.5% copper. Tin-based Babbitt is favored for high-speed, critical applications like steam turbines and generators due to its superior corrosion resistance, excellent thermal conductivity, and high load-carrying capacity.
- Lead-Based Alloys (ASTM B23 Grade 7, etc.): Composed primarily of lead with antimony and tin. While more economical, lead-based alloys are reserved for lower speed, light-to-medium load applications and are increasingly restricted due to environmental regulations (such as RoHS compliance).
Selecting the correct alloy composition and ensuring a flawless metallographic bond between the Babbitt layer and the backing shell (steel, cast iron, or bronze) is paramount to bearing performance and durability.
Step-by-Step Babbitt Bearing Replacement & Overhaul Process
Executing a Babbitt bearing replacement during a planned shutdown requires meticulous engineering precision. The process spans several critical phases, from initial diagnostics to final alignment verification:
1. Dismantling and Initial Inspection
During the turbine or motor casing disassembly, the bearing halves are carefully removed. Technicians perform visual inspections to identify wear patterns, scoring, pitting, wiping, or signs of oil starvation. Pre-disassembly measurements, including rotor float and clearance checks using feeler gauges or dial indicators, are documented for baseline reference.
2. Nondestructive Testing (NDT)
Before deciding to machine or scrap the bearing, NDT methods are applied:
- Liquid Penetrant Testing (PT): Used to detect micro-cracks, porosity, and surface defects on the Babbitt face.
- Ultrasonic Testing (UT): Crucial for evaluating the bond integrity between the Babbitt metal and the backing shell. A bond area of less than 80-90% (depending on OEM specifications) dictates a complete re-babbitting process.
3. Removal of Old Babbitt & Surface Preparation
The worn Babbitt alloy is melted out under controlled thermal conditions to prevent distortion of the backing shell. The shell is then thoroughly cleaned, degreased, and grit-blasted. A critical step is "tinning"—applying a thin layer of pure tin to the backing surface to guarantee a strong chemical bond for the new Babbitt alloy.
4. Casting the New Babbitt Layer
Two primary casting methods are utilized in modern manufacturing:
- Centrifugal Casting: The bearing shell is spun at high speeds while molten Babbitt is poured. The centrifugal force forces impurities to the inner diameter (which are later machined away) and ensures a dense, void-free Babbitt structure with excellent grain refinement.
- Static Casting: Used for complex shapes or very large bearings. The alloy is poured into a mold containing the pre-heated bearing shell. Controlled cooling is required to prevent segregation of the alloying elements.
5. Precision Machining and Boring
Using high-precision CNC vertical and horizontal lathes, the bearing is machined to its final design dimensions. This includes cutting lubrication grooves, oil pockets, and relief zones. Machining tolerances must be kept within micrometers to ensure the creation of a perfect hydrodynamic oil film during machine operation.
6. Scraping, Fitting, and Alignment
Despite advanced machining, manual "scraping" by skilled technicians remains a vital art. Using engineer's blue (Prussian blue) on the shaft journal, the bearing is test-fitted, and high spots are scraped away. This process is repeated until a uniform contact area (typically 75% to 80% coverage) is achieved, ensuring stable support and optimal heat dissipation.
Systemic Integration: The Role of Lubrication and Thermal Management
A Babbitt bearing does not operate in isolation. Its longevity and performance are directly dependent on the auxiliary systems supporting the rotating machinery. Integrating high-quality accessories into your planned maintenance routine is essential for maximizing bearing life.
The Criticality of Lube Oil Filtration

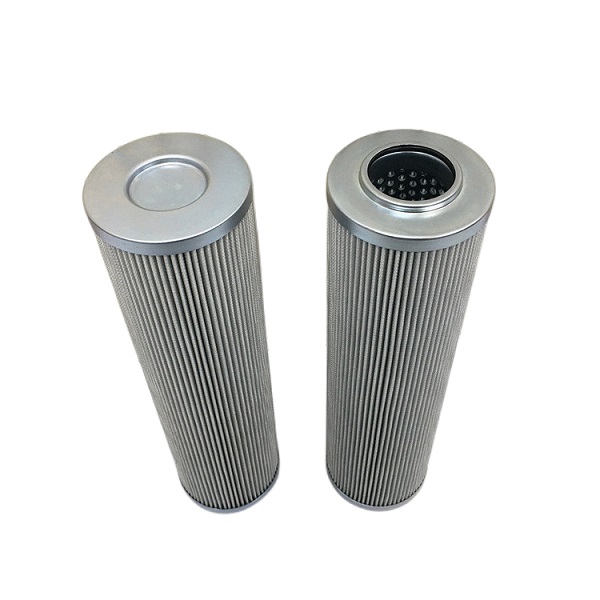

Babbitt is a soft material, designed specifically to allow small particulate contaminants to embed into its surface, preventing them from scratching the rotating shaft. However, if the lubrication oil is contaminated with high particulate loads, the bearing surface will quickly become saturated, leading to abrasive wear and premature failure. Implementing high-efficiency filters—such as the Regeneration device anion filter PA810-002D and the Hydraulic oil return filter element MF1802A03HVP01—ensures that the lube oil remains pristine, minimizing particulate wear and extending the bearing replacement cycle.
Thermal Control & Casing Integrity
During the reassembly of steam turbine casings and bearing housings, achieving uniform bolt tension is critical to preventing casing distortion and bearing misalignment. Using specialized heating equipment like the ZJ series steam turbine bolt heating rod allows maintenance teams to achieve precise thermal elongation of casing bolts, ensuring perfect joint tightness and maintaining the precise alignment of the internal Babbitt bearings.
